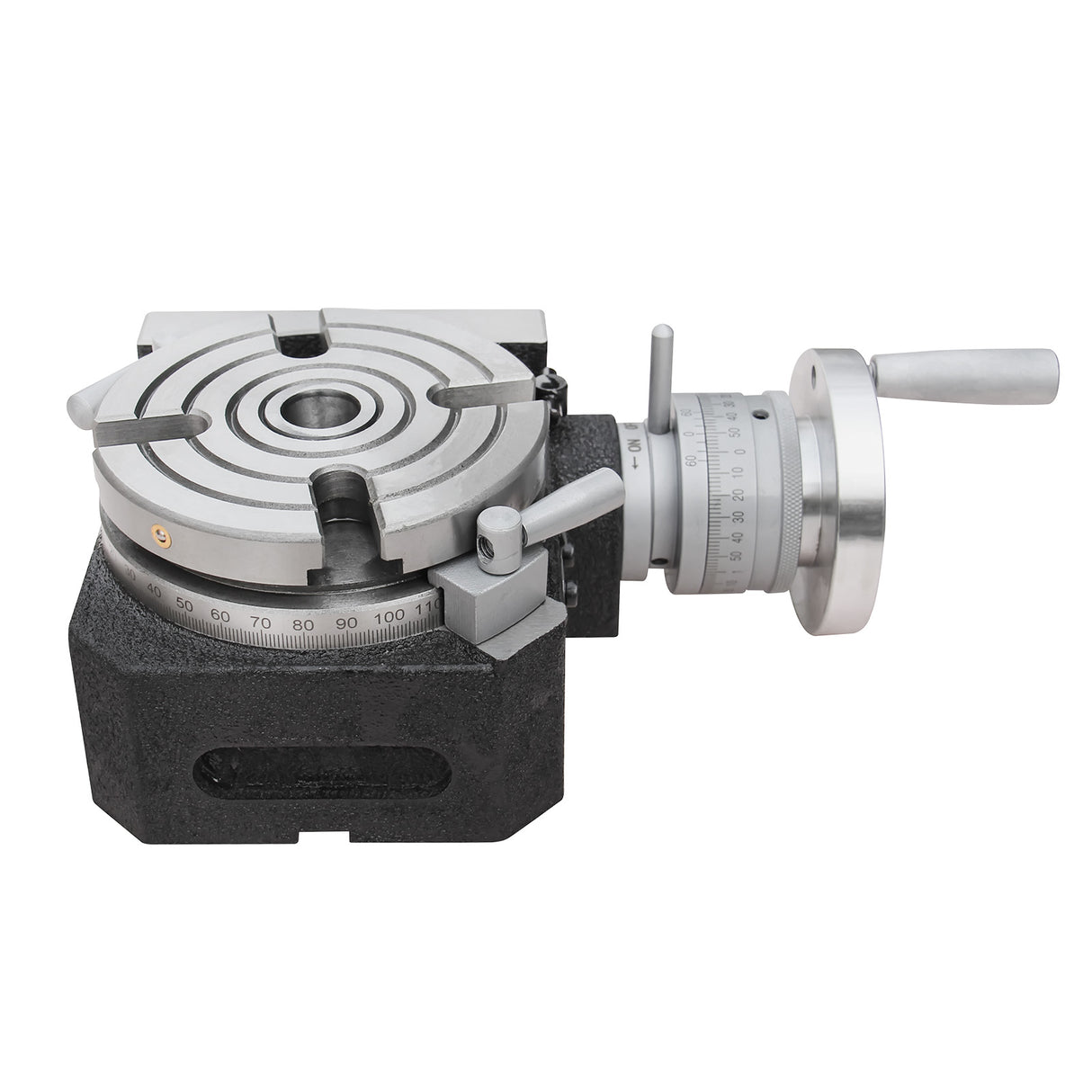

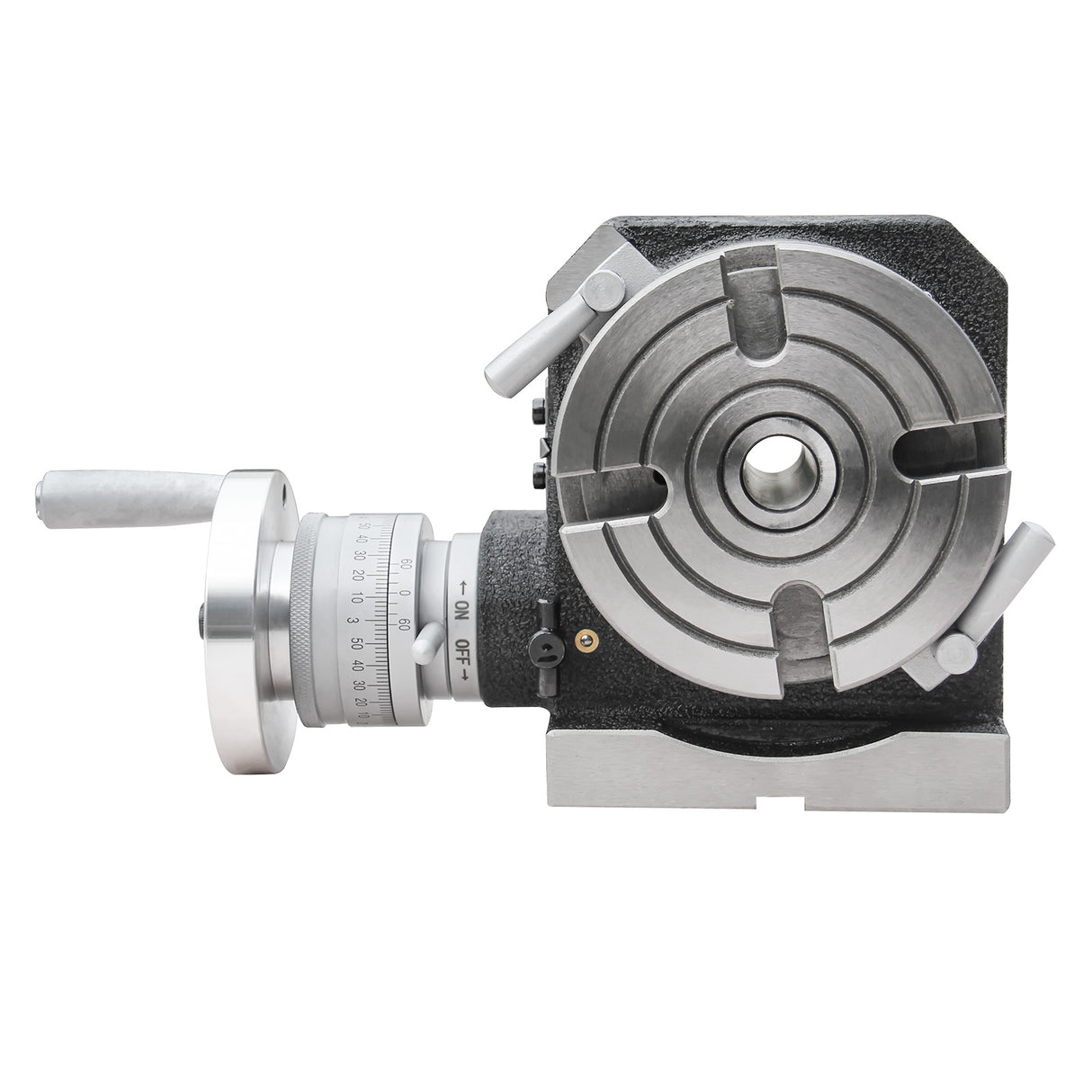

BOKA HVP-41 Turning Device with Dividing Table DP-1, 110mm Milling ...
Characteristics

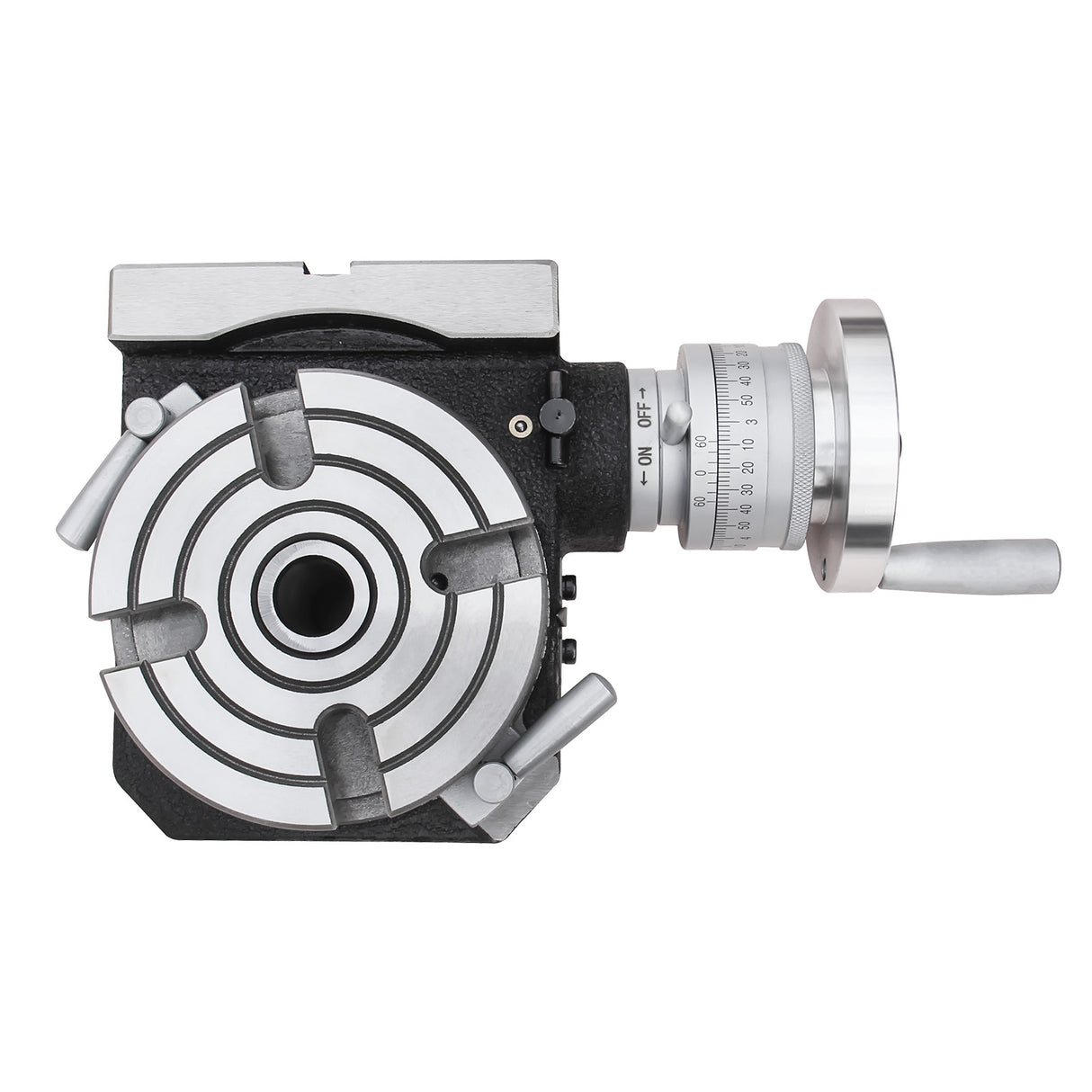

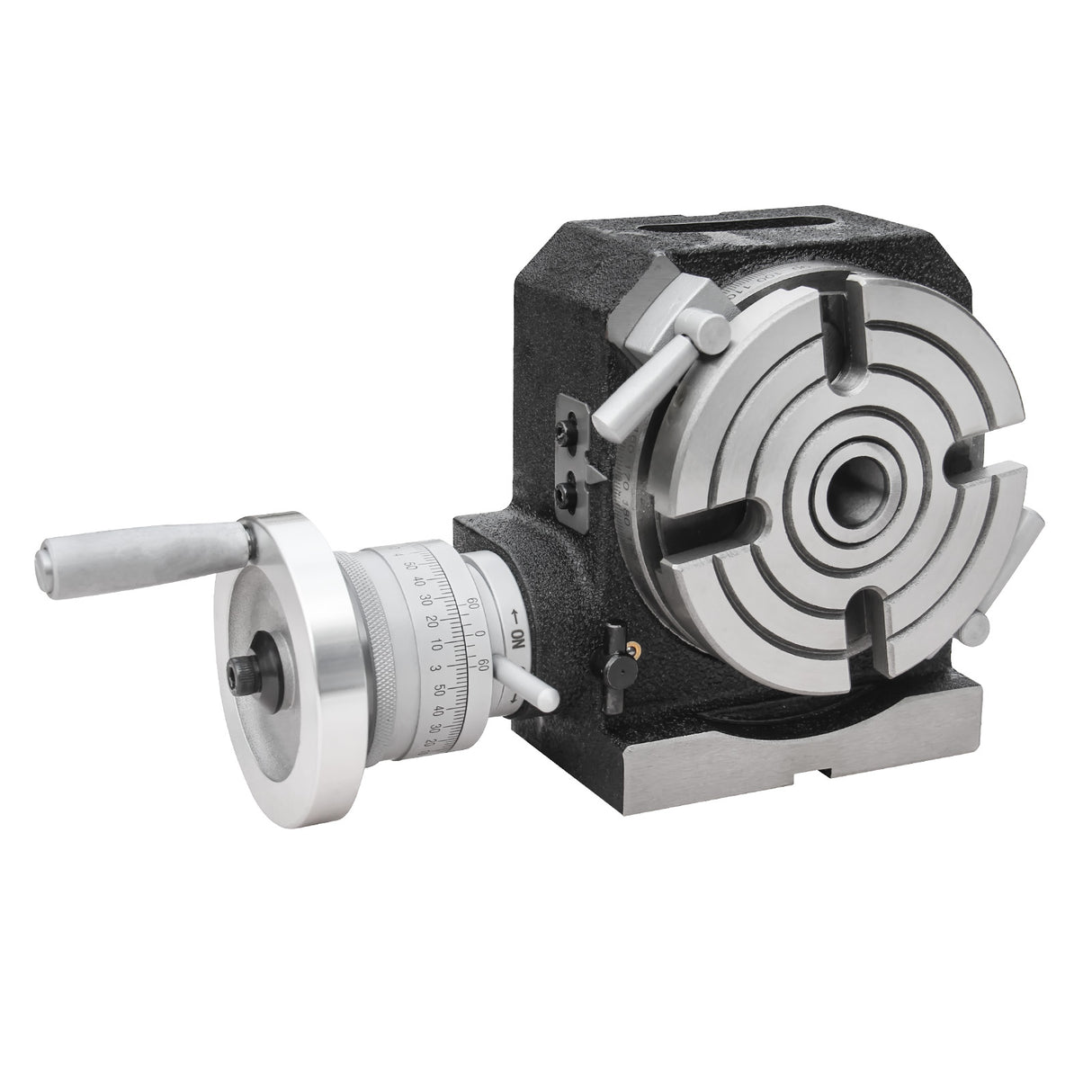

- 110 mm rotating device for horizontal and vertical applications with 4 grooves
- Hardened and ground working surface with a gear ratio of 72:1

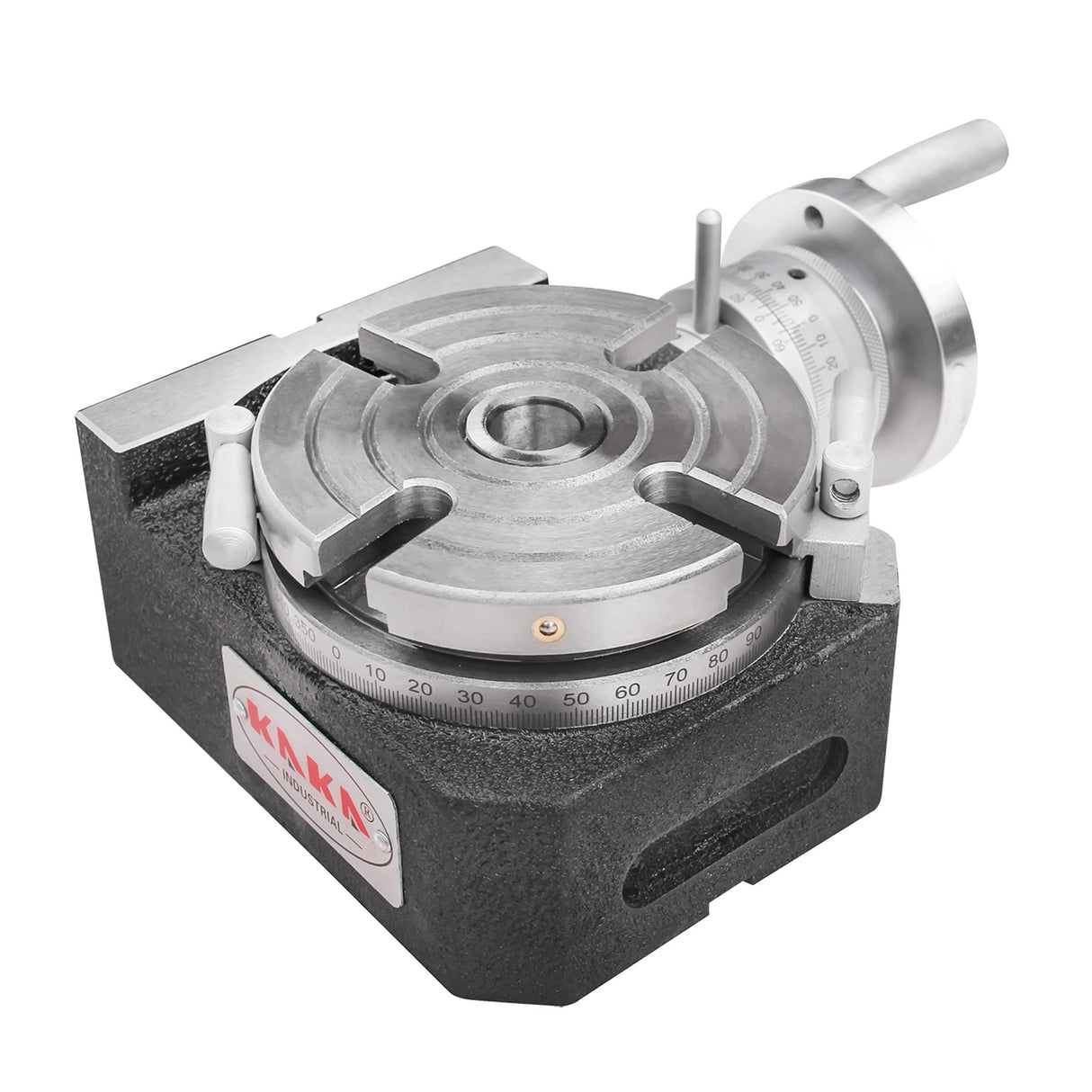

- 360° table graduation
- Table height: 85 mm

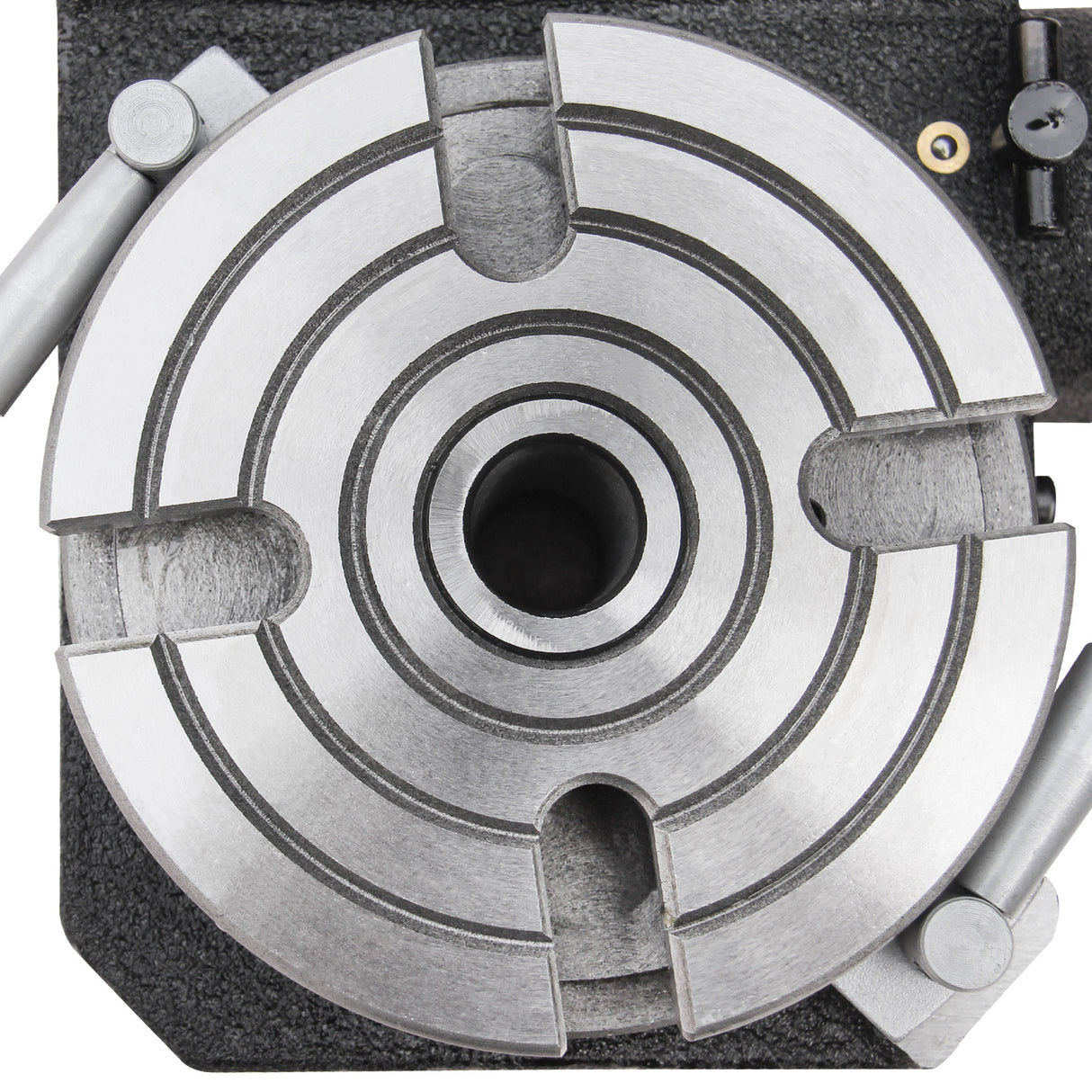

- Center hole: MT2

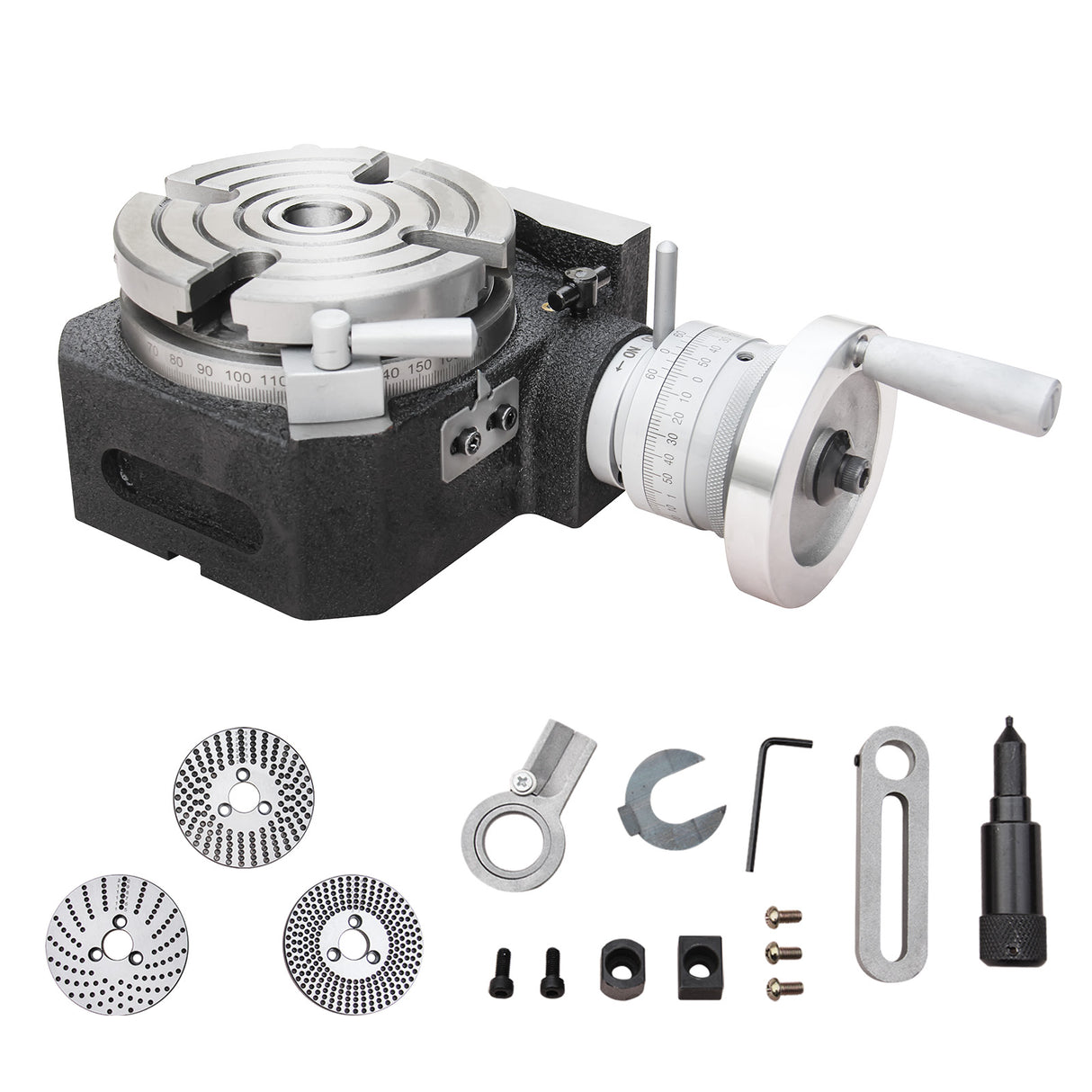

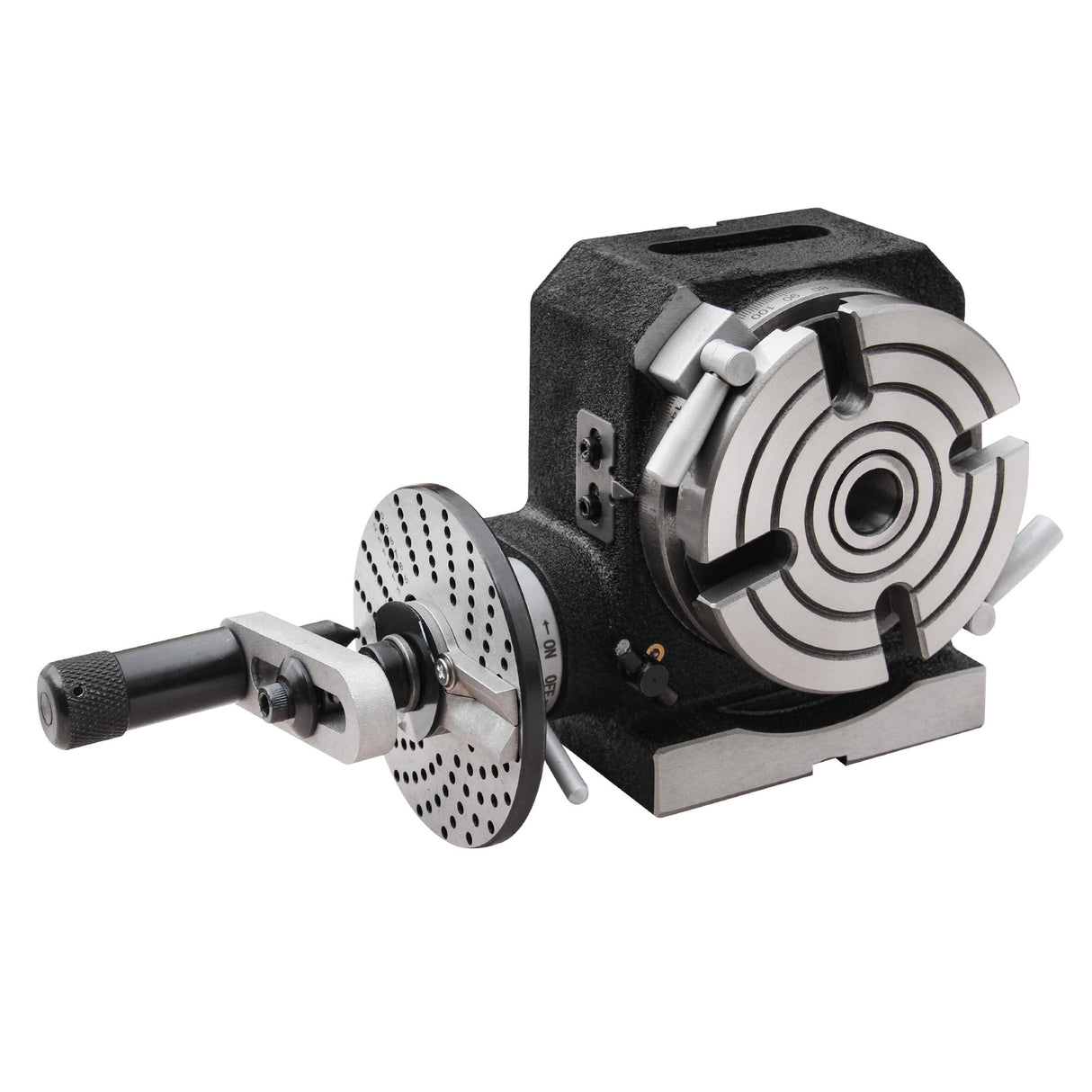

- Supplied with 3 index plates
- Number of holes of the graduation / index plate
Installation dimensions HV-4
A 145 mm, B 114 mm, C 85.5 mm, D 110 mm, E 12 mm
H 85 mm, M MT2, N 68 mm
Technical data
- SKU : 162311
- Model : HVP-41
- Table diameter : 110 mm
- Morse taper of the center hole : MT2
- Height of the center when mounted vertically : 85.5 mm
- Width of the T-slot : 12 mm
- T-slot angle : 90°
- Width of the positioning key : 12 mm
- Modules of shaft and worm gear : 1
- Worm gear ratio : 1:72
- Graduation of the table : 360°

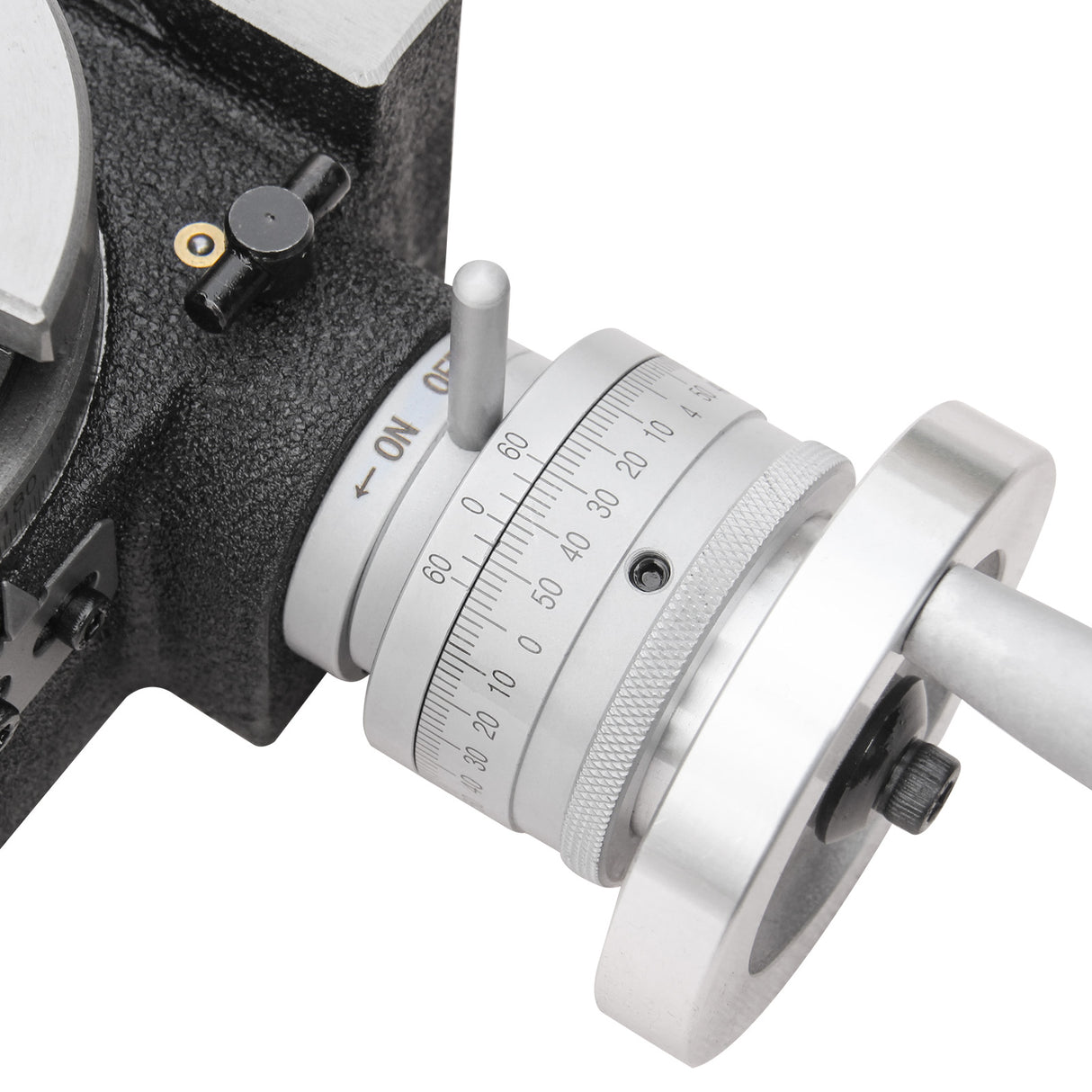

- Rotation angle of the table per revolution of the screw : 5°

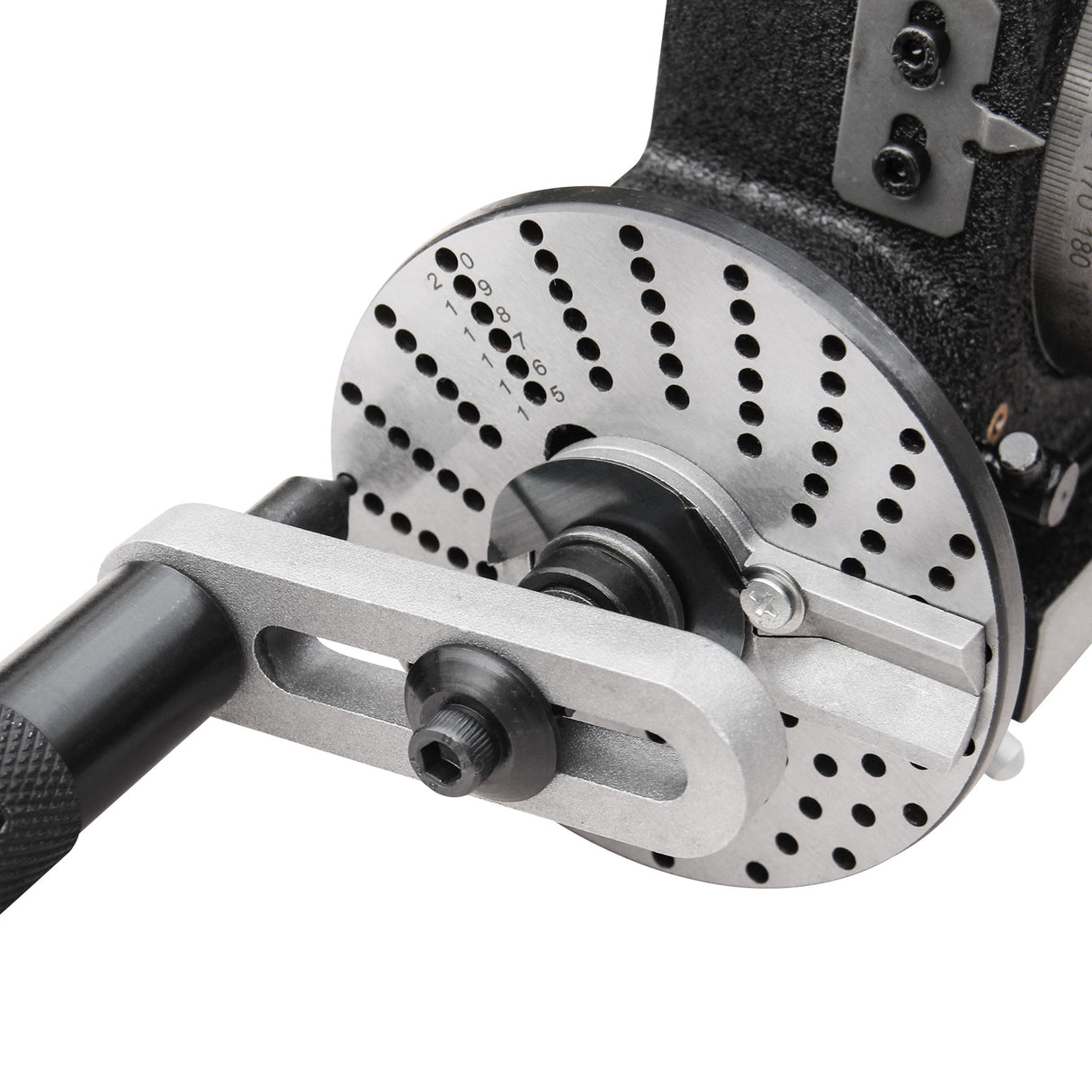

- Index plate A : 15, 16, 17, 18, 19, 20
- Index plate B : 21, 23, 27, 29, 31, 33
- Index plate C : 37, 39, 41, 43, 47, 49
- Packaging size : 29 x 24 x 13 cm
- Net weight / gross weight : 9.5 / 10.5 kg
