GEMTOESR-4014 three-roll round bending machine with electric motor & cone bending device, max. sheet thickness 2.0 mm, max. rolling thickness 1020 mm, 400V 50Hz 3PH
GEMTOESR-4014 three-roll round bending machine with electric motor & cone bending device, max. sheet thickness 2.0 mm, max. rolling thickness 1020 mm, 400V 50Hz 3PH is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and transport
Delivery and transport
Add some general information about your delivery and shipping policies.
GEMTOESR-4014 three-roll round bending machine with electric motor ...
BOKA ESR-4014 Asymmetric roll bending machine – 3 high-strength steel rolls, electric motor, max. sheet thickness 2 mm
Product features:
- Versatile Asymmetric Roll Bending Machine : Equipped with 3 high-strength steel rolls and precision ground cast iron rolls for reliable performance.
- Adjustable rollers : Fixed top roller and adjustable bottom and rear roller for optimal flexibility and different bending requirements.
- Easy to use : The upper roller can be removed via a cam lock to make it easier to use.
- Robust construction : The stable locking structure of the upper roller ensures smooth operation.
- Versatile applications : Ideal for sheet metal bending, manufacturing cylindrical parts, repairs, small batch production and more.
Technical details:
- Model: ESR-4014
- Maximum rolling thickness: 2.0 mm
- Maximum rolling width: 1020 mm
- roller diameter: 60 mm
- Engine power: 0.75 kW
- Packaging size: 174 x 60 x 126 cm
- Net weight: 260 kg | Gross weight: 325 kg
Applications:This sliding roller machine is suitable for a wide range of applications in different industries, including the manufacture of cylindrical parts, sheet metal bending, repair and restoration work, small batch production and in educational institutions and hobby workshops.
Payment and security
How is the payment?
Your payment details are collected securely. We will not store any digital data related to our credit card or have access to your credit card information.
Function Indication
1. This roll bending machine can process widths up to 1020mm and thicknesses up to 2.0mm.
2. Our machine is equipped with 0.75kW/3PH, 1.1kW/1PH dual speed motor, which offers great flexibility, allowing operators to choose the speed that best suits the task, thus achieving better control and precision.
3. Our roll bending machine can not only roll but also cone the material. Create smooth arcs, bends, cones and cylinders for different sheet thicknesses.
4. The asymmetric roll bending machine has 3 high-strength steel rollers. These machines are equipped with high-strength steel rollers, precisely ground cast iron rollers and a top-swinging rolling mechanism.
5. A crank rod can be easily installed on the lower axle or the rear connecting axle to act as a drive axle, saving time and labor.
6. The locking structure of the upper roller ensures smooth operation of the rollers. The roll bending machine provides strength and stability when forming your sheet metal. The upper axis of our roll bending machine can be easily pulled out to remove the processed workpiece.
7. The roll bending machine can be used in a variety of industries and applications, including the production of cylindrical parts, sheet metal bending, repair and restoration work, small batch production, educational institutions, hobby workshops and more.
1. This roll bending machine can process widths up to 1020mm and thicknesses up to 2.0mm.
2. Our machine is equipped with 0.75kW/3PH, 1.1kW/1PH dual speed motor, which offers great flexibility, allowing operators to choose the speed that best suits the task, thus achieving better control and precision.
3. Our roll bending machine can not only roll but also cone the material. Create smooth arcs, bends, cones and cylinders for different sheet thicknesses.
4. The asymmetric roll bending machine has 3 high-strength steel rollers. These machines are equipped with high-strength steel rollers, precisely ground cast iron rollers and a top-swinging rolling mechanism.
5. A crank rod can be easily installed on the lower axle or the rear connecting axle to act as a drive axle, saving time and labor.
6. The locking structure of the upper roller ensures smooth operation of the rollers. The roll bending machine provides strength and stability when forming your sheet metal. The upper axis of our roll bending machine can be easily pulled out to remove the processed workpiece.
7. The roll bending machine can be used in a variety of industries and applications, including the production of cylindrical parts, sheet metal bending, repair and restoration work, small batch production, educational institutions, hobby workshops and more.
Technical data

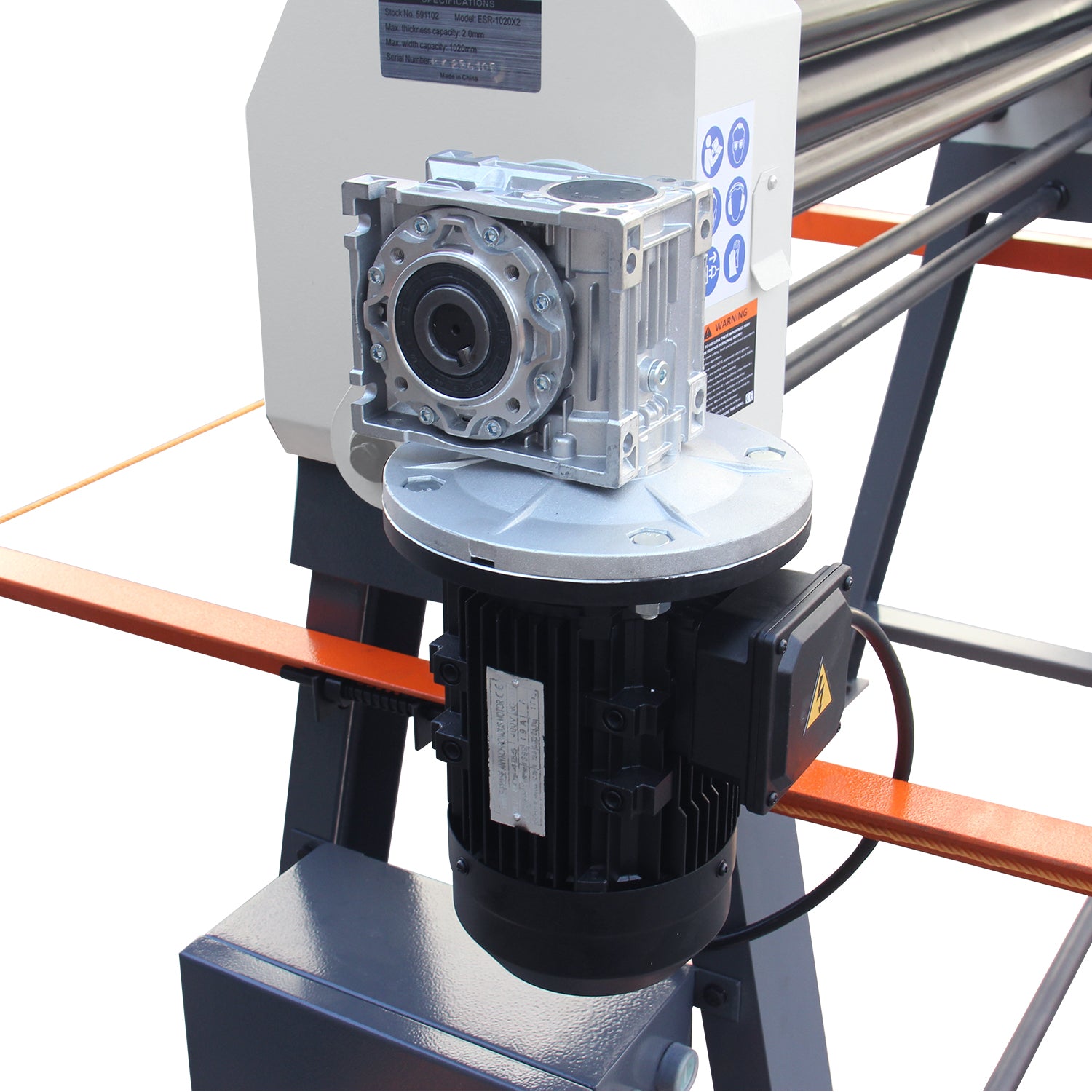

two-speed motor
handwheel
Easily removable upper axle
