BOKA BS‑1 sectional head set – precision and versatility in one

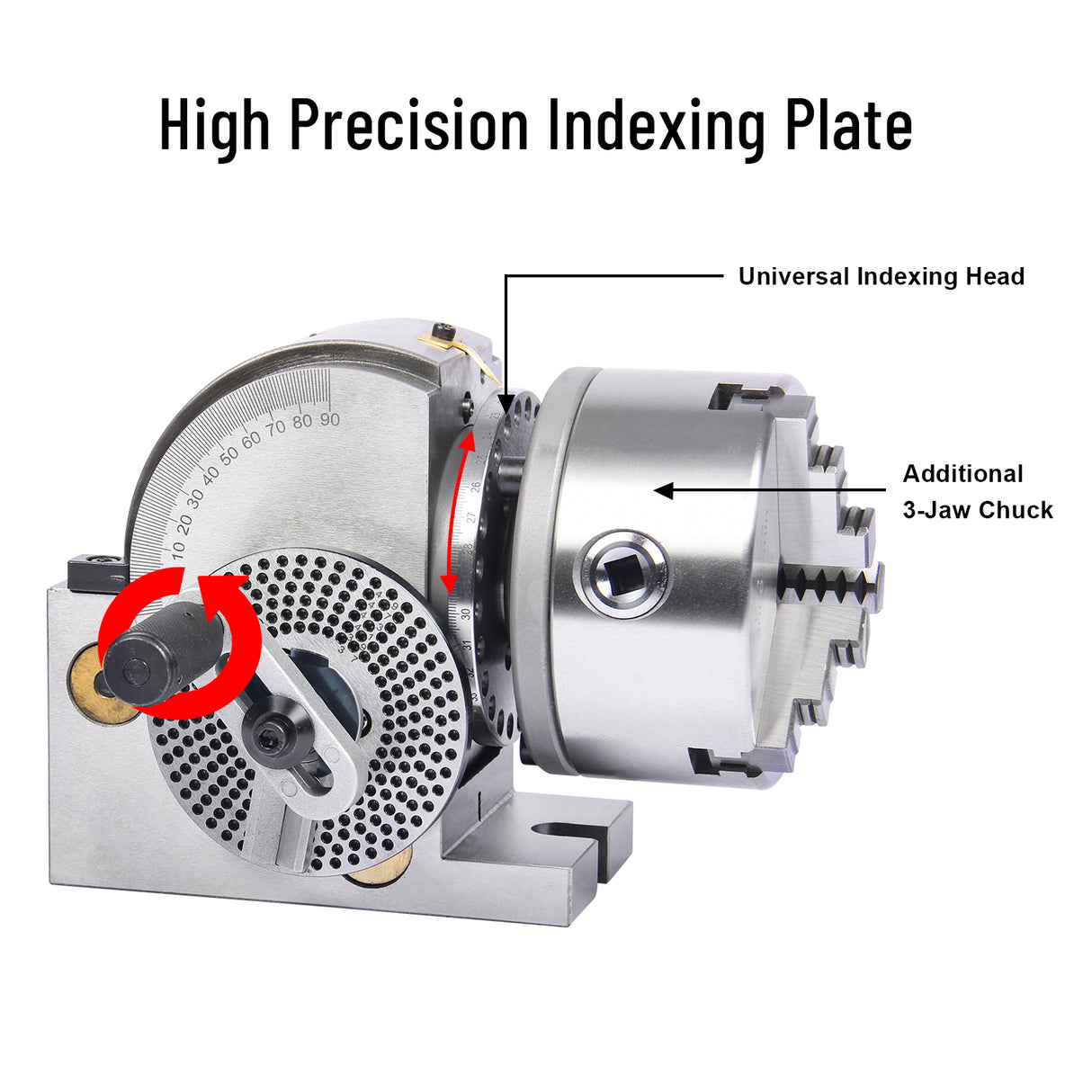

Experience the highest precision and versatility with the BOKA BS‑1 indexing head set. Thanks to its simple design and innovative indexing system, you can master even the most demanding machining tasks without additional accessories.
Main features:
-
Simple indexing:
The universal indexing head acts as a direct indexing center. Without additional components, it enables precise machining of face and tooth milling. Thanks to 24 quick indexing holes, 2, 3, 4, 6, 8, 12 and 24 divisions can be easily realized. -
Highest precision:

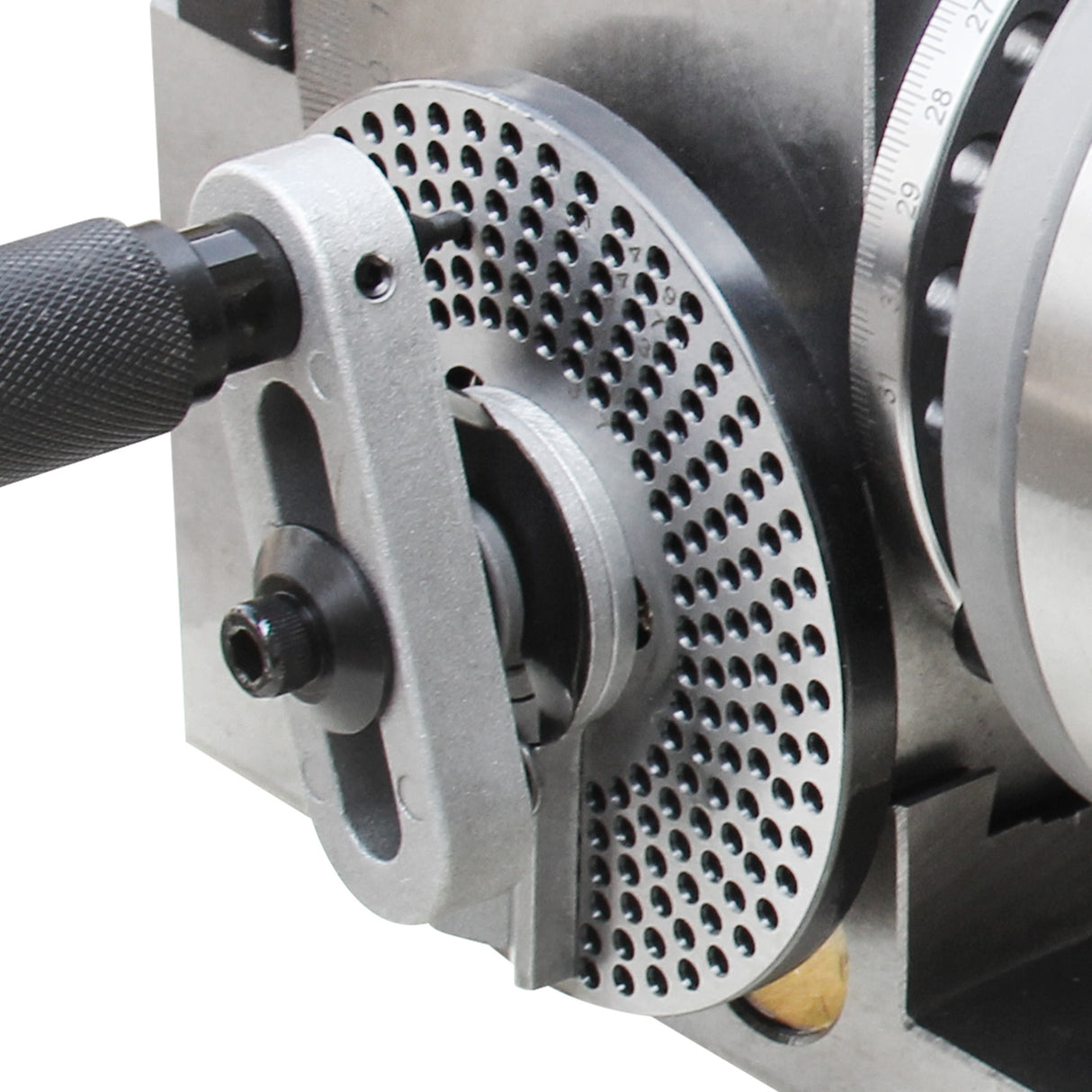

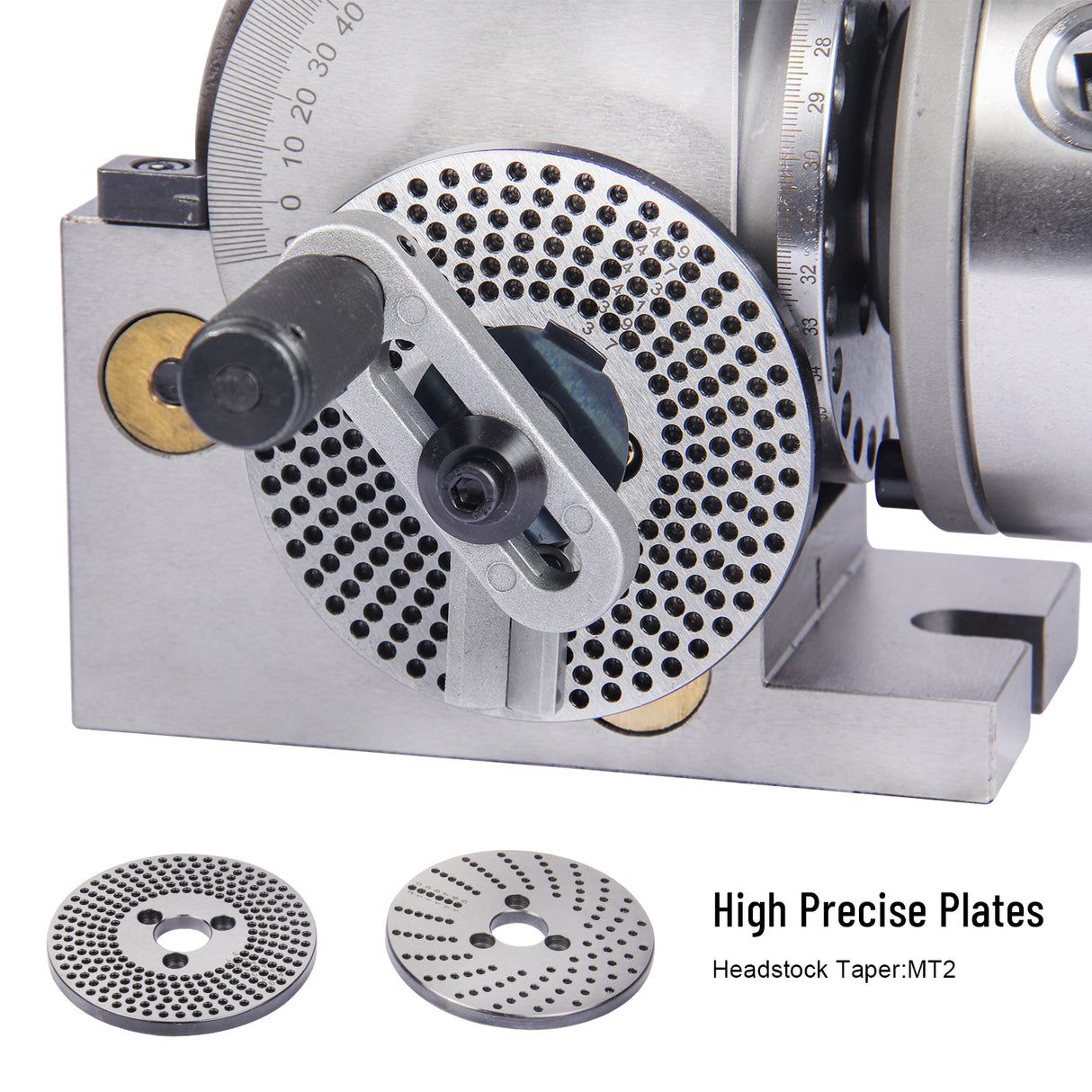

With the indirect division discs A, B and C you can achieve exact divisions from 2 to 50 and from 51 to 380 (excluding prime numbers and certain other numbers). -
Stable workpiece support:
The MT2 tailstock provides powerful support for the workpiece, ensuring maximum stability throughout the entire machining process. -
Versatile use:
Whether milling blades on cutters, cutting gear teeth, curved milling slots or drilling a circular arc – the BS‑1 is your ideal partner for precise and efficient manufacturing processes. -

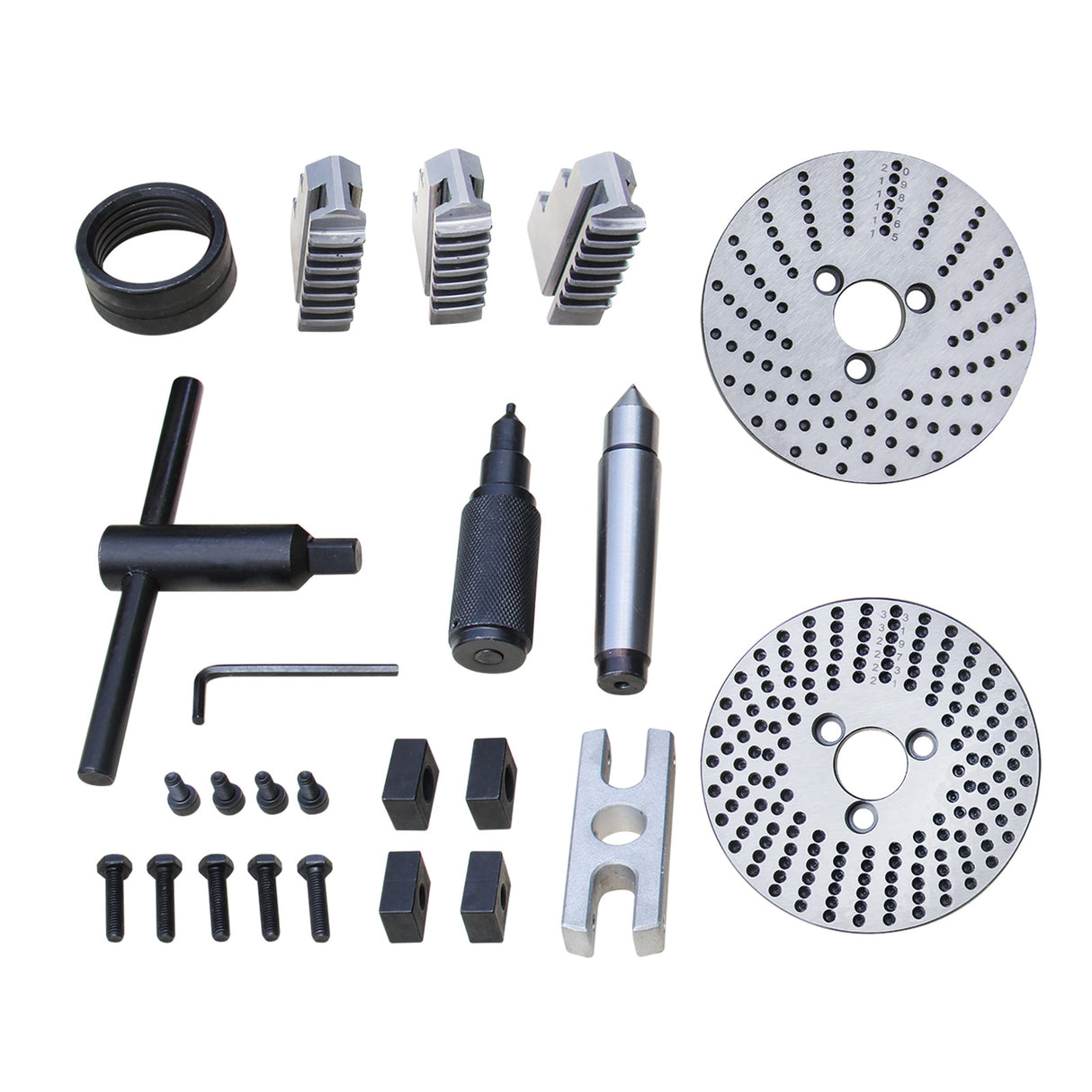

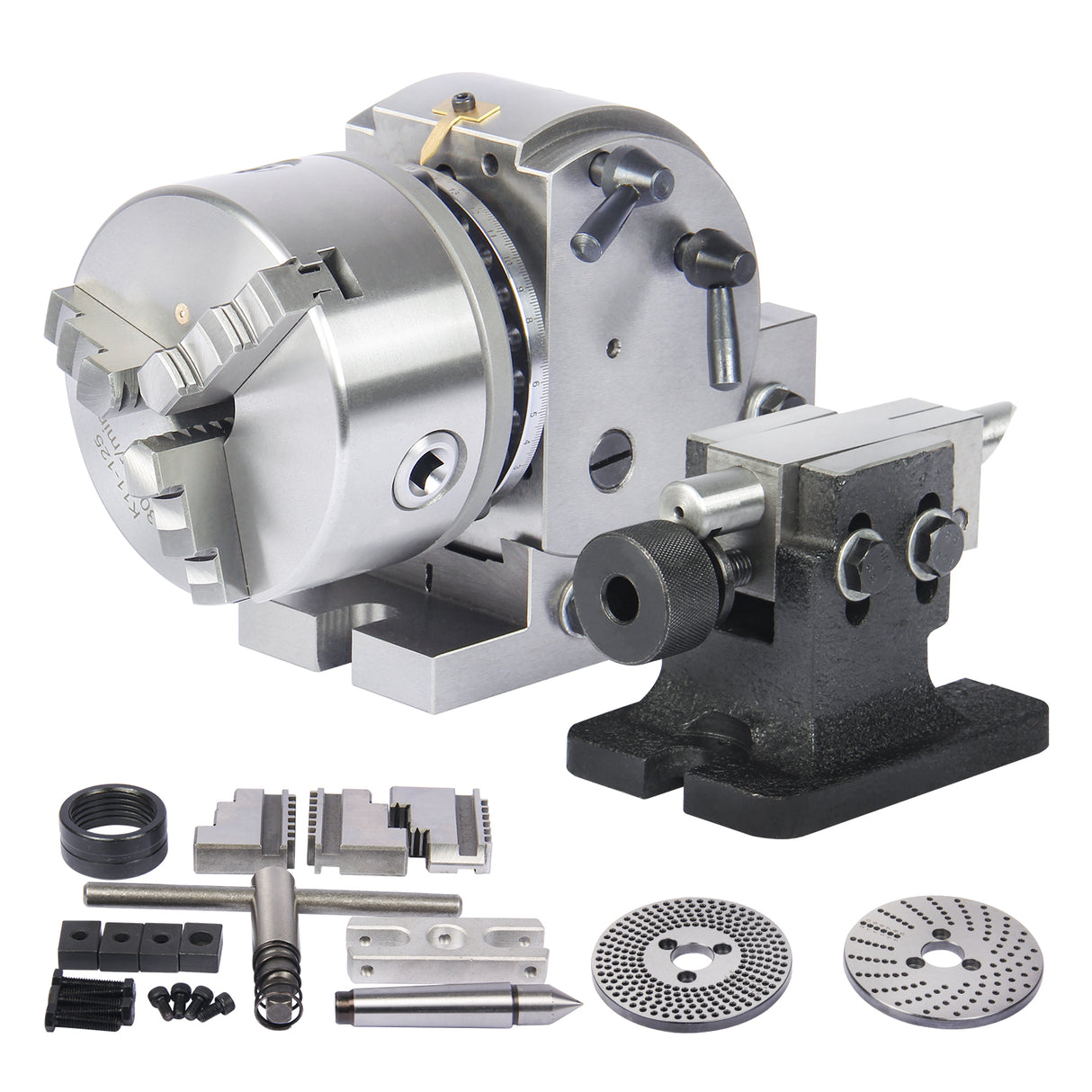

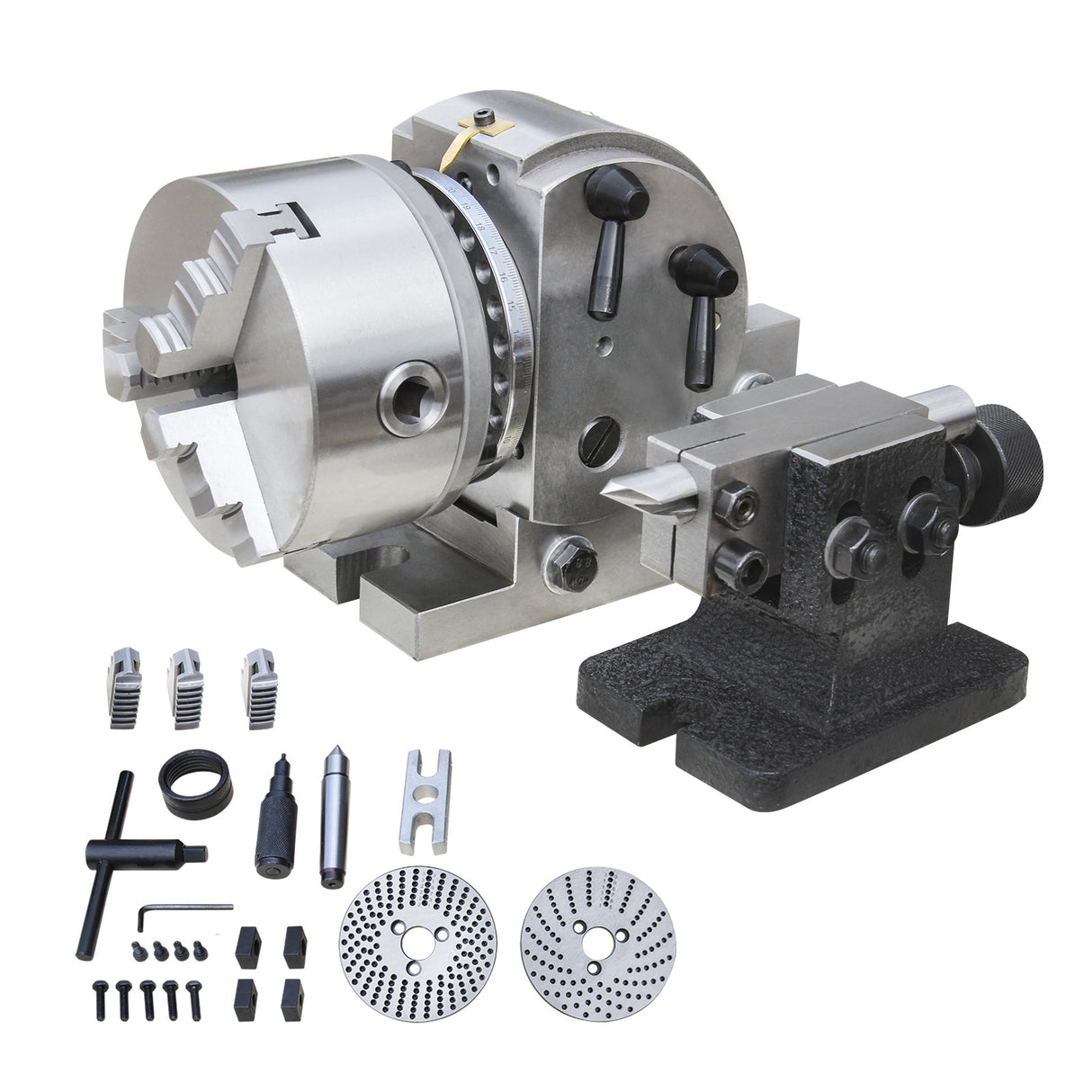

Comprehensive delivery package:
Included in delivery are:- headboard
- 152 mm (6-inch) 3-jaw lathe chuck
- tailstock
- Middle piece and drive dog
- Threaded carrier plate
- 3 dividing discs
With a gear ratio of 1:40, the BS‑1 delivers excellent results.

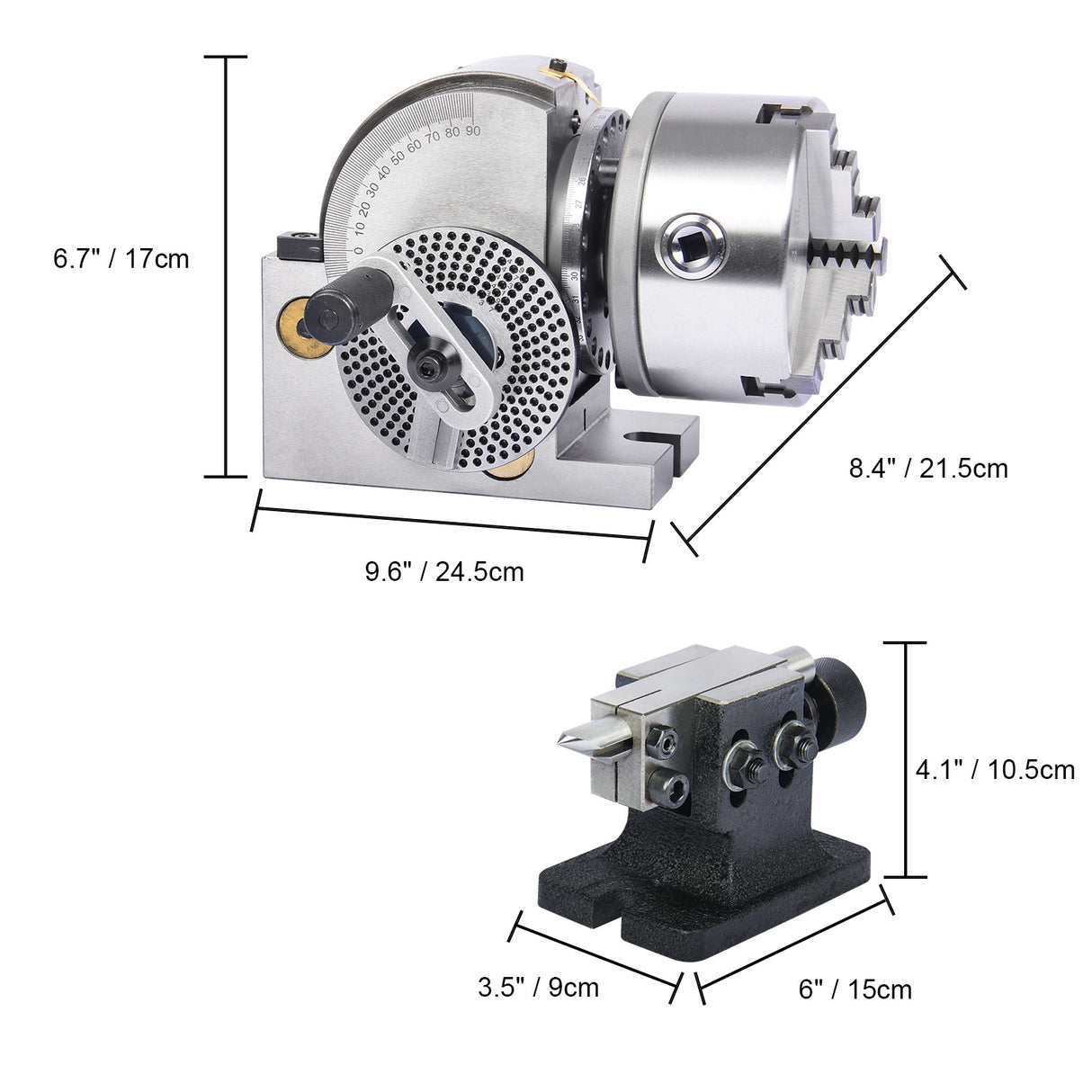

Technical data (metric conversion):
- Item number: 162321
- Model: BS‑1

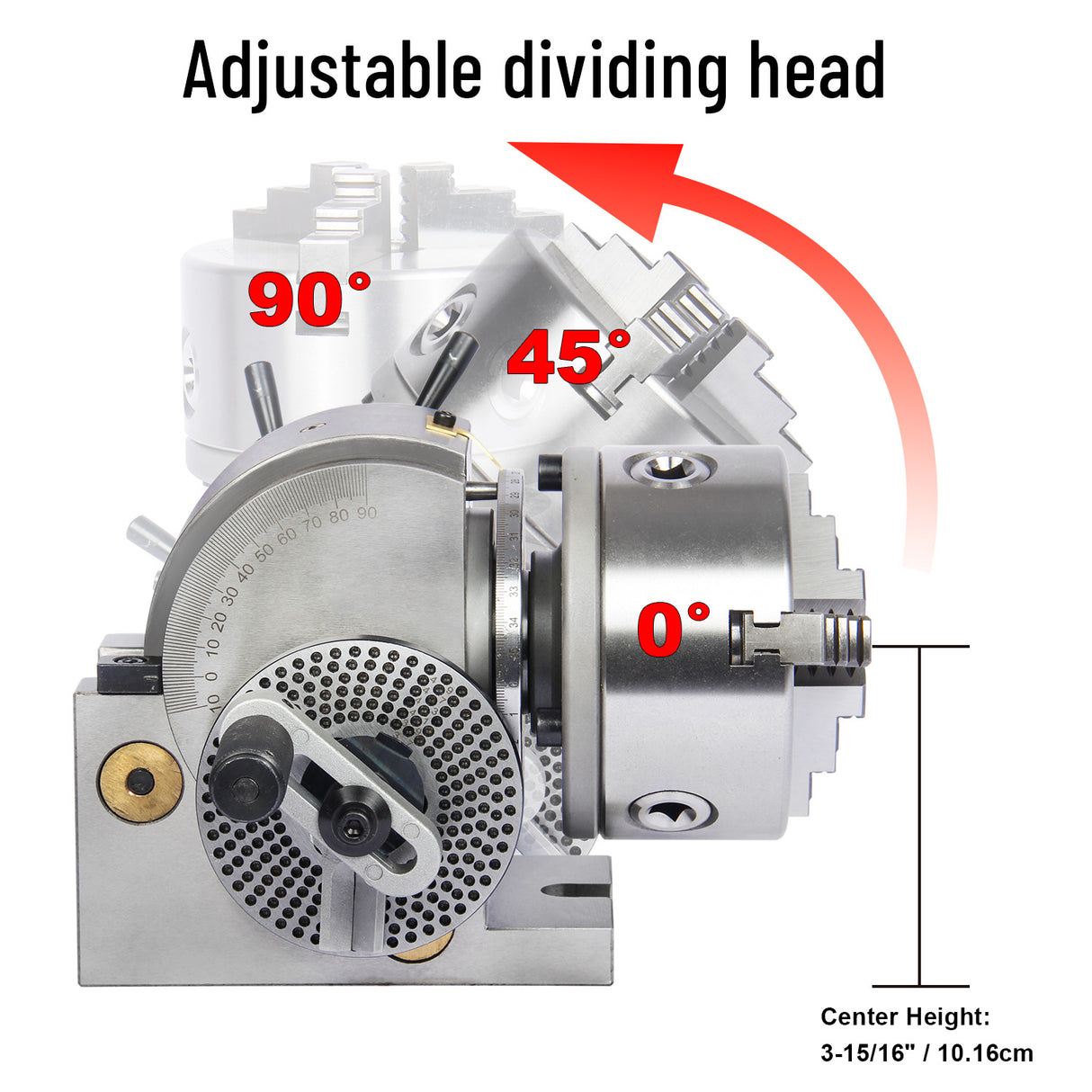

- Centerpiece height: approx. 128 mm
- Spindle bore (through hole): approx. 17 mm
- Spindle mount: 1‑1/2" (approx. 38.1 mm) x 8 TPI
- Spindle taper runout: approx. 0.015 mm
- Gear ratio: 40:1
- Spindle taper: MT3
- Packaging size: approx. 528 mm x 280 mm x 280 mm
- Net weight / gross weight: approx. 37 kg / 39 kg
The BOKA BS‑1 dividing head set is the perfect assistant for precise and demanding machining – see for yourself its quality and efficiency!
