BOKA BS-0 Precision Dividing Head 127 mm Semi-Universal Dividing He...

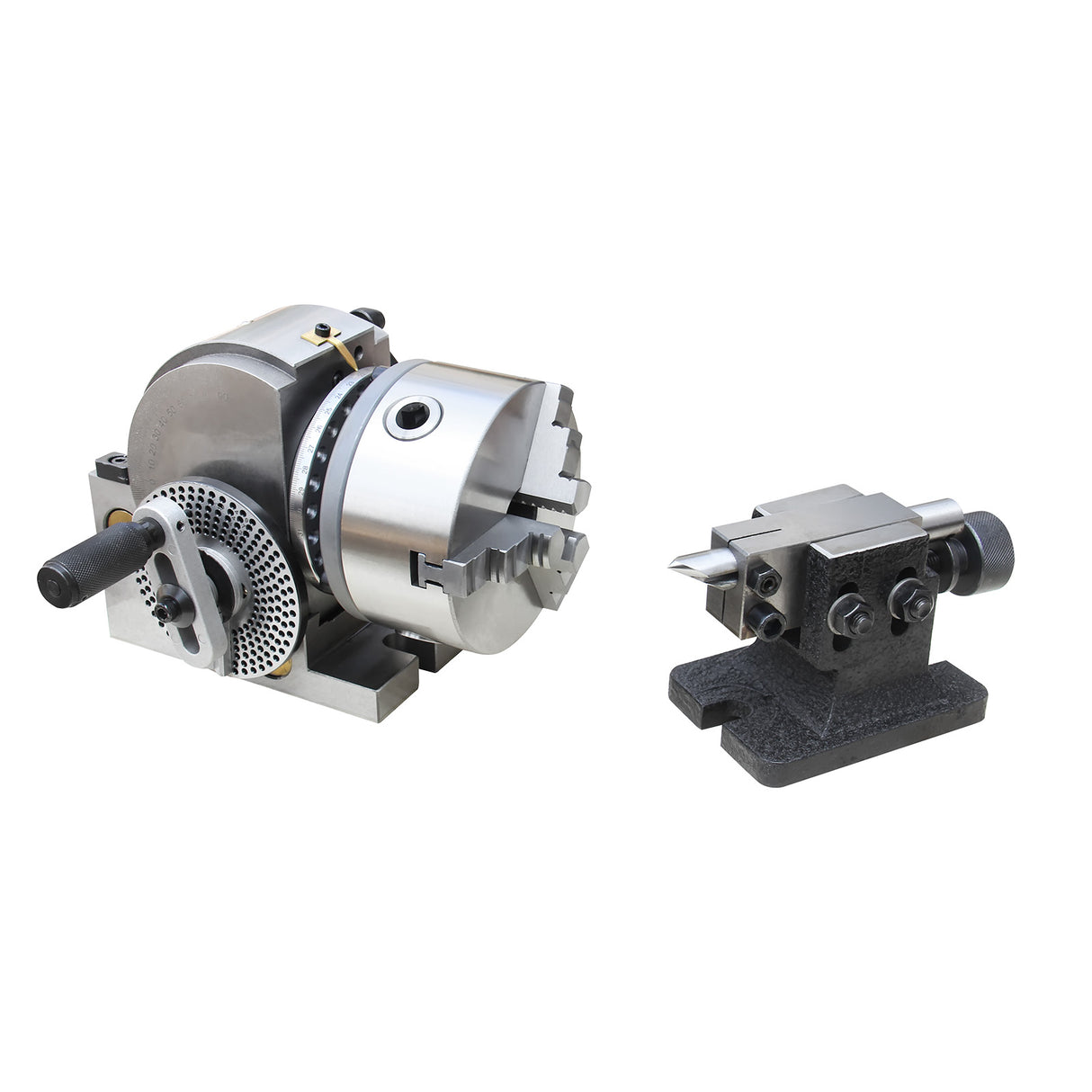

GEMTO BS-0 Precision Dividing Head – 127 mm Semi-Universal Dividing Head with 3-Jaw Chuck & Dividing Discs
The GEMTO BS-0 is a high-precision indexing head designed for versatile milling and drilling operations. It enables direct and indirect indexing and is ideal for machining of gear teeth, grooves, bolt circles and complex workpieces .
Product features:
- Easy direct division – 24 quick-cut holes allow 2, 3, 4, 6, 8, 12 and 24 divisions without accessories.
- Precise indirect division – With the division discs A, B and C almost all divisions from 2–380 (except prime numbers and some other numbers) can be achieved.
-
Stable MT2 tailstock – Provides strong support for the workpiece during machining.
- Versatile applications – Perfect for milling grooves, cutting gears, drilling bolt circles and other machining operations.

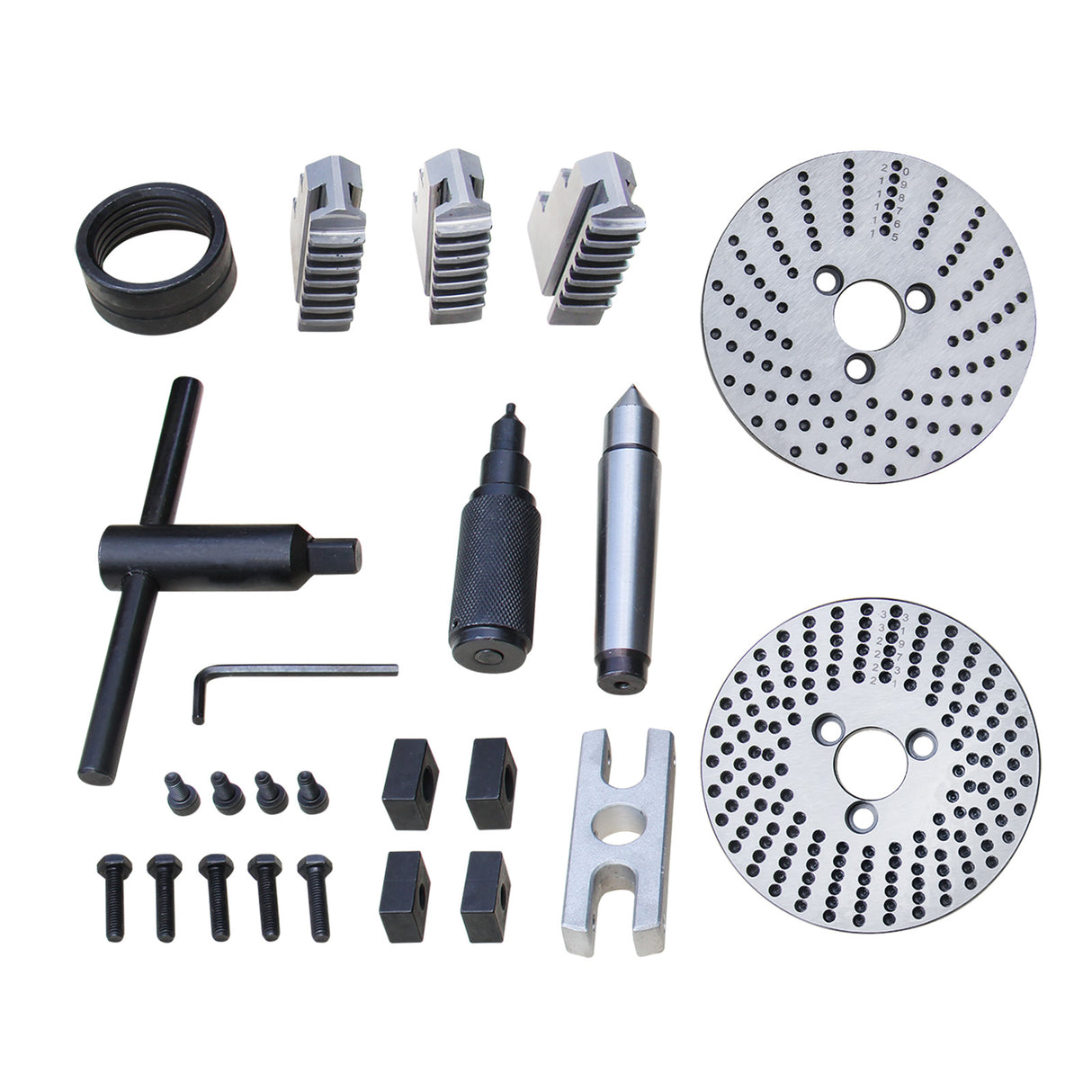

- High-quality accessories – Includes 5" 3-jaw chuck, tailstock, driver, threaded jaw plate & 3 indexing discs .
Technical data:
- Model: BS-0
- Spindle bore: 0.55" (14 mm)
- Spindle mount: 1-1/2" x 8 TPI
- Spindle taper: MT2
- Spindle taper runout: 0.0006" (0.015 mm)
- Gear ratio: 40:1
- Centering height: 3.93" (100 mm)
- Packaging dimensions: 16.8" x 9.6" x 9.6" (42.7 x 24.4 x 24.4 cm)
- Net weight/gross weight: 49/51 lbs (22/23 kg)
