BOKA angle vice 100 mm adjustable for welding work AC-100H made of ...
product description

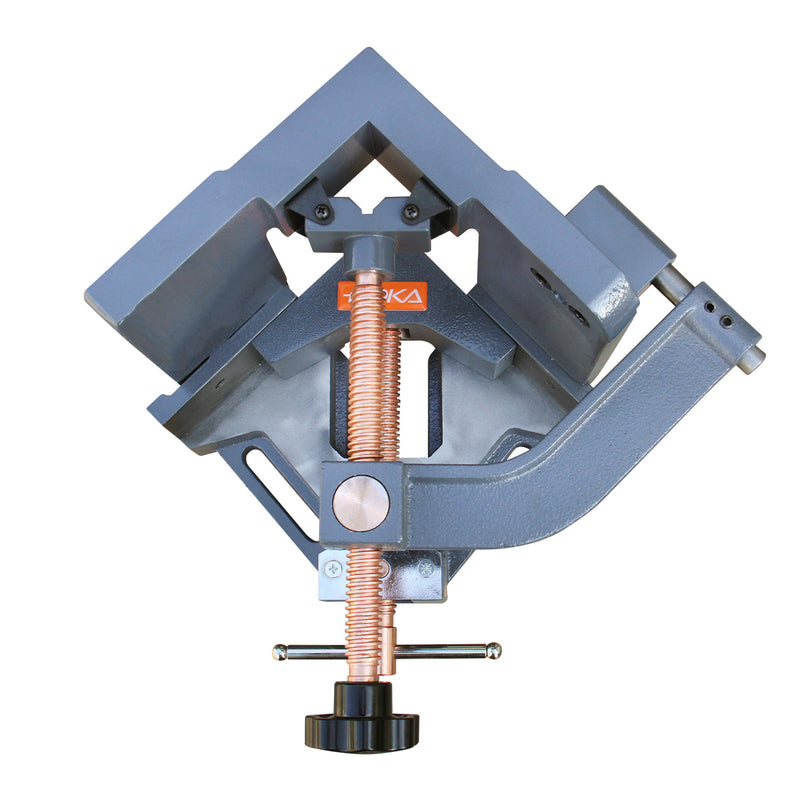

GEMTO angle vise AC-100H – Adjustable vise for precise clamping of profiles and materials at 90° angles.
Main features:
- Robust cast iron: The angle vice is made of high-quality cast iron and offers a stable base for precise work.
- Adjustable clamps: The clamp opening reaches up to 100 mm and enables the clamping of different material thicknesses. The upper clamping area can be rotated and is equipped with a small and a large clamp.
- Rotatable spindle and clamping head: Allows individual adjustment to different material thicknesses and offers high flexibility during processing.
- Copper-coated threaded spindle: The copper coating prevents welding spatter from sticking, making cleaning easier and extending the life of the product.
- Easy to assemble: The vise has mounting slots for secure table mounting.
Technical data:
- Article number: 576300
- Model: AC-100H
- Terminal opening: 100 mm
- Jaw height (lower clamp): 60 mm
- Total height of the jaws (including upper clamp): 190 mm
- Pack size: 37x36x33 cm
- Net weight: 24 kg
- Gross weight: 25 kg
Payment and security
How is the payment?
Your payment details are collected securely. We will not store any digital data related to our credit card or have access to your credit card information.
Function Indication
1. Cast iron body clamp，Jaw opening up to 100mm.Top clamp swivel, standard with 1 small and 1 large clamp attachment.
2. This vice is suitable for holding, clamping and aligning profiles at right angles.
3. The spindle and the clamping head are rotatable. This means that both can adjust independently of each other to the profile being inserted. This means that material cross-sections of different thicknesses can also be clamped together.
4. 3-axis welding clamp with machined base and clamping area.
5. The axis arm is curved for greater workpiece clearance and swings away for easy and quick access. It holds 3 parts at 90 degrees to each other for corner machining. One small clamp mount and one large clamp mount are included.
6. The threaded spindle and spindle nut are copper-coated, so that welding spatter adheres much less easily than with non-copper-coated threaded spindles.
7. The 3-Axis Welding Clamp is a versatile tool used in a variety of industries and tasks including cabinet making, picture frame making, furniture construction, woodworking, metalworking, welding and frame building, repair work, model making and various DIY projects.
8. Mounting slots for table mounting are available
1. Cast iron body clamp，Jaw opening up to 100mm.Top clamp swivel, standard with 1 small and 1 large clamp attachment.
2. This vice is suitable for holding, clamping and aligning profiles at right angles.
3. The spindle and the clamping head are rotatable. This means that both can adjust independently of each other to the profile being inserted. This means that material cross-sections of different thicknesses can also be clamped together.
4. 3-axis welding clamp with machined base and clamping area.
5. The axis arm is curved for greater workpiece clearance and swings away for easy and quick access. It holds 3 parts at 90 degrees to each other for corner machining. One small clamp mount and one large clamp mount are included.
6. The threaded spindle and spindle nut are copper-coated, so that welding spatter adheres much less easily than with non-copper-coated threaded spindles.
7. The 3-Axis Welding Clamp is a versatile tool used in a variety of industries and tasks including cabinet making, picture frame making, furniture construction, woodworking, metalworking, welding and frame building, repair work, model making and various DIY projects.
8. Mounting slots for table mounting are available
