FIVE BULLET POINTS

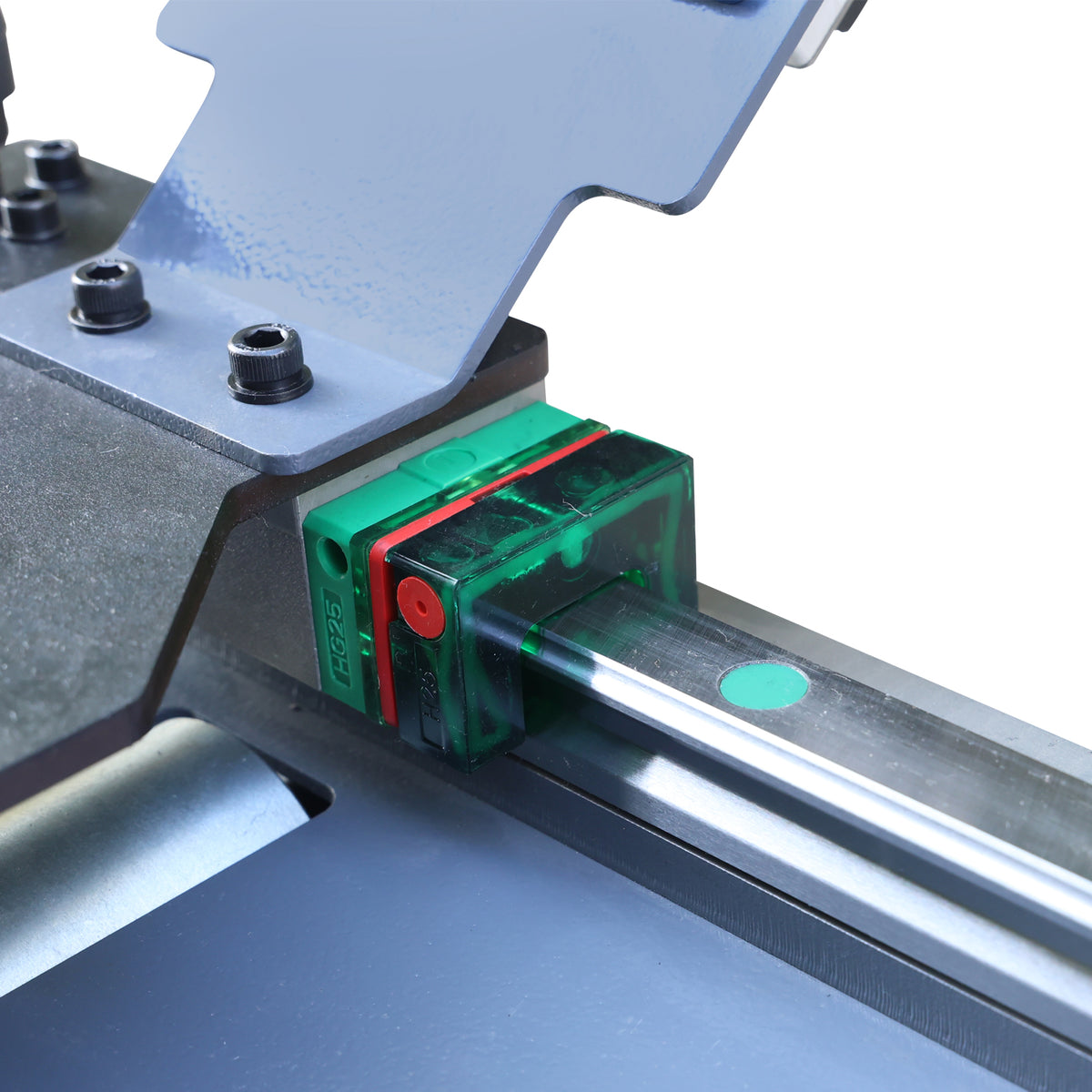

1. Digital length stop: Move the stop manually and use the digital display to set repeated cut lengths for bars, tubes and sections. The stop is not motor-positioned, and the product does not provide automatic stock feeding.
2. 3050 mm usable support length: A 3050 mm effective length and 365 mm usable width support longer workpieces during positioning at a suitable saw. The roller table supplements the machine's existing material support.
3. Adjustable working height: Set and clamp the height between 760 and 1060 mm. Check the saw's support height and align the roller conveyor before use so the workpiece is supported at the required level.

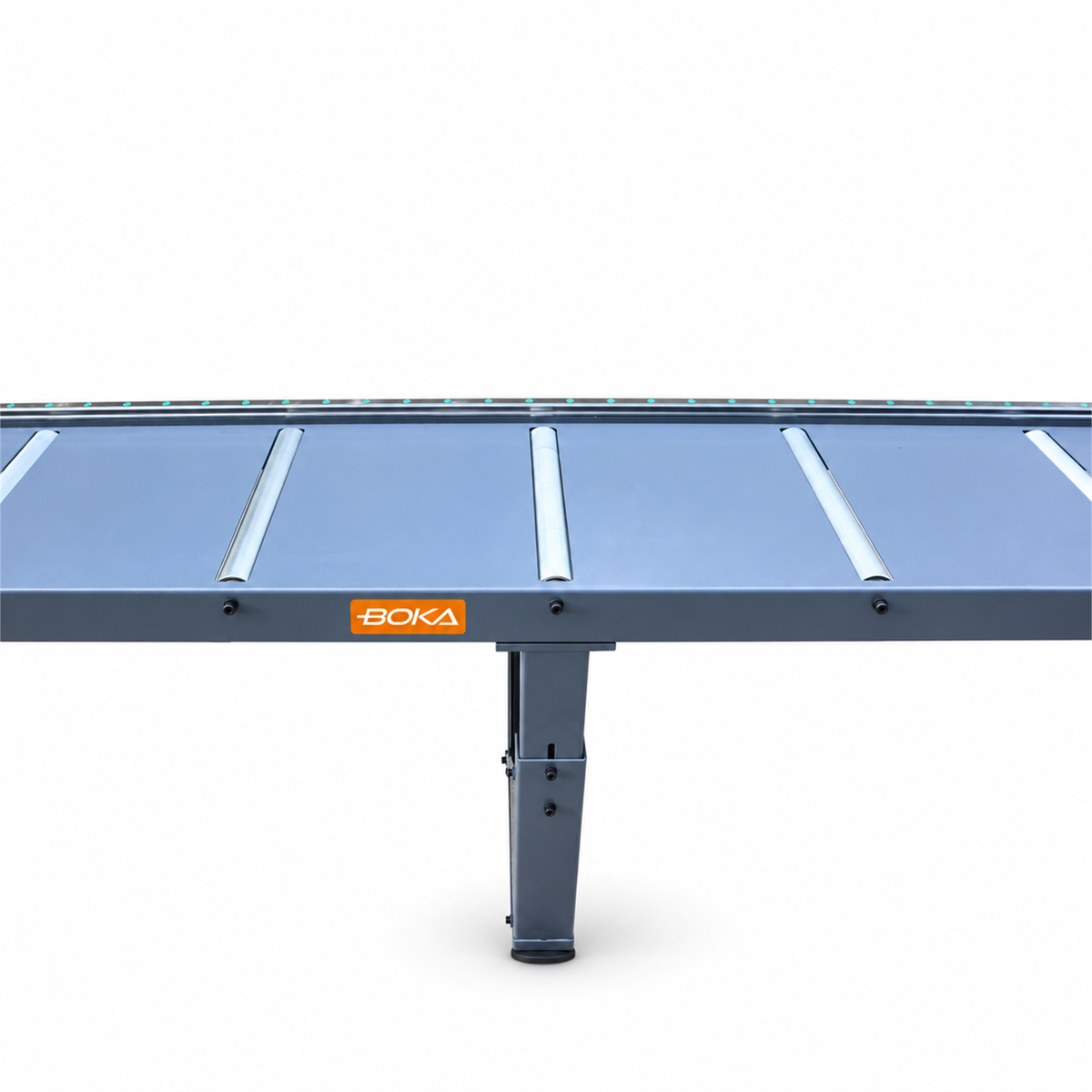

4. Up to 400 kg load capacity: Steel rollers support material during manual movement. The listed maximum load is for the conveyor, not for each individual roller. The source does not specify a permitted concentrated point load.
5. Match it to your workstation: Check the height range, support dimensions and stop position against the intended saw. This is a separate accessory; a saw is not included. Compatibility with every machine is not guaranteed.
PRODUCT DESCRIPTION

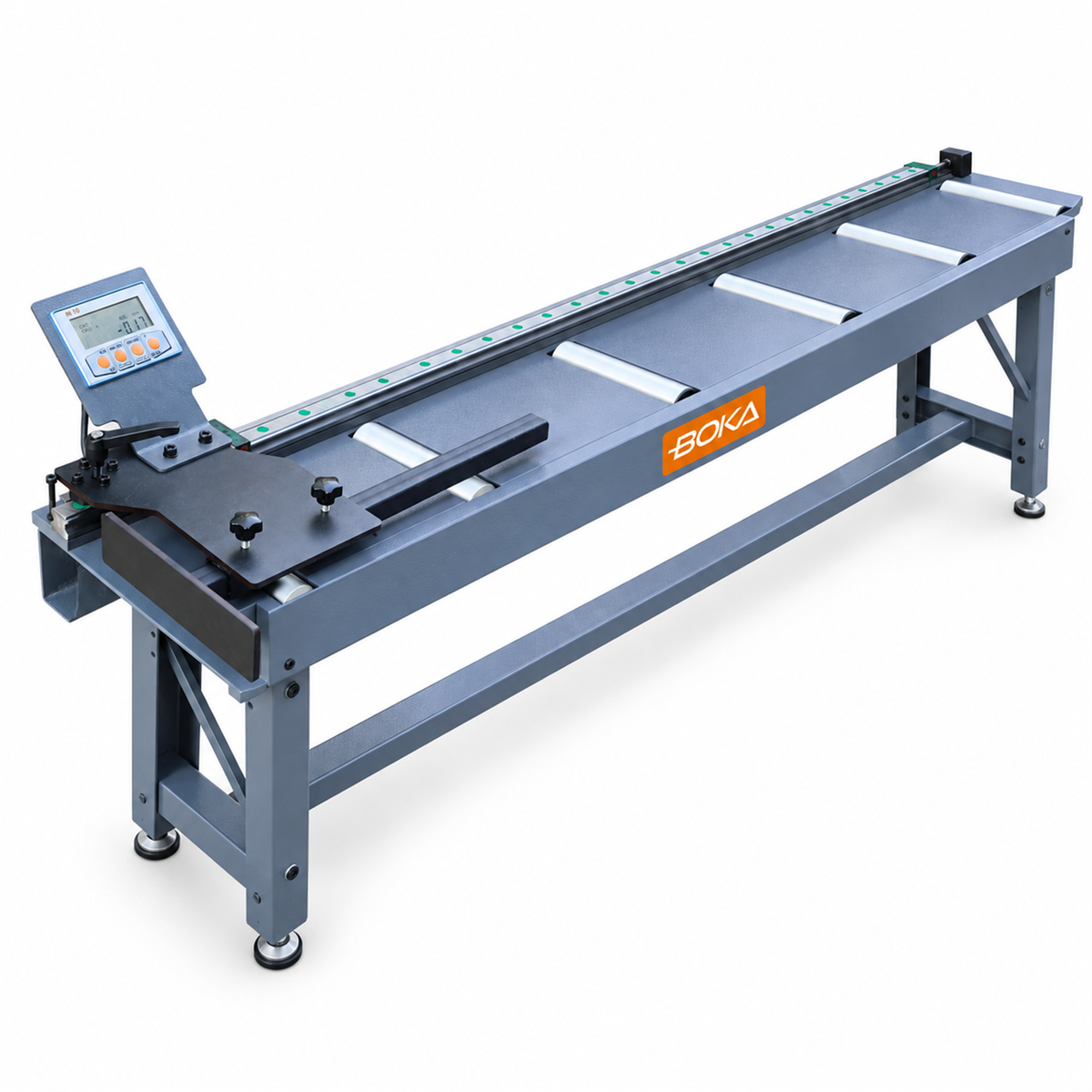

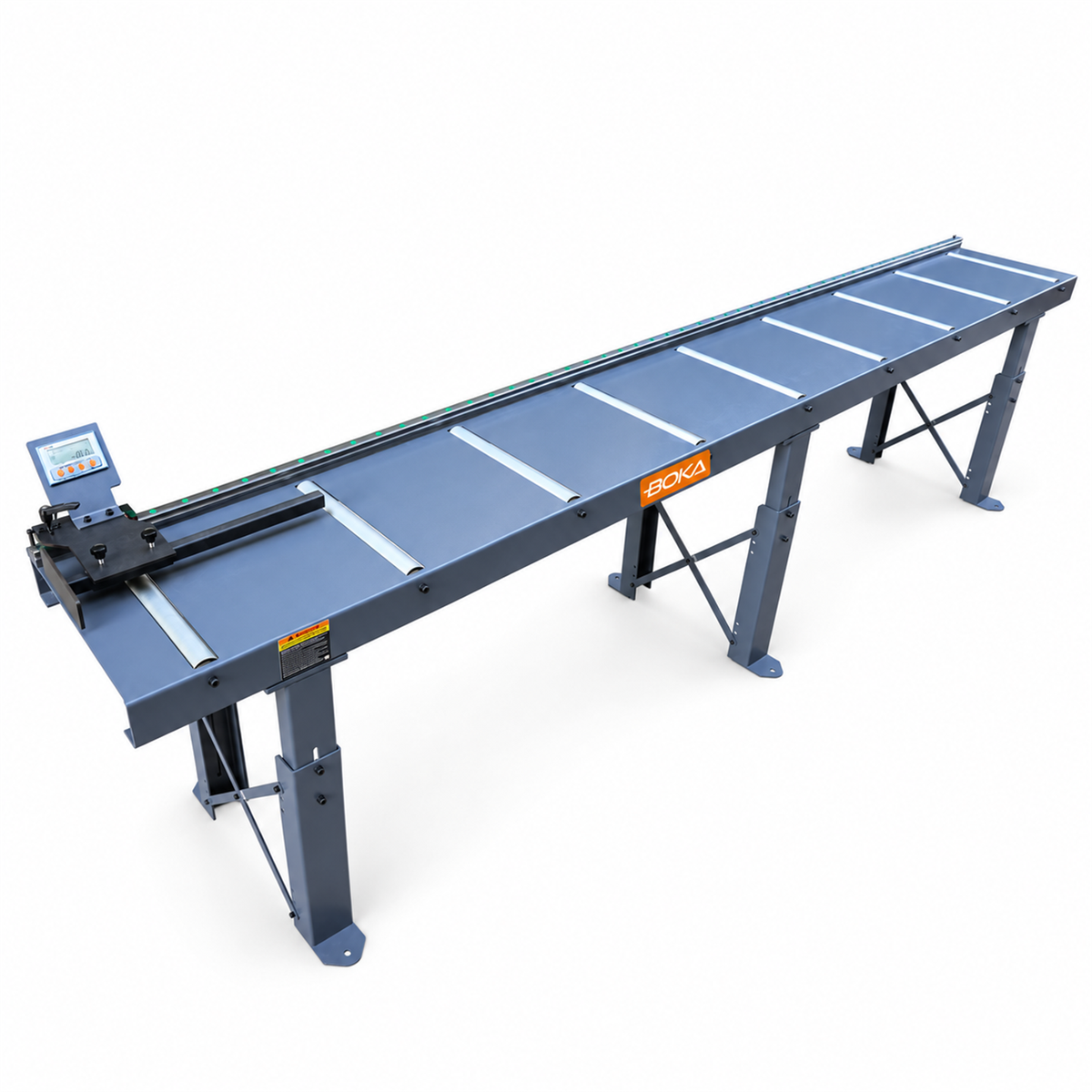

The BOKA RB365x3000D is a roller conveyor with a digital length stop for cutting bars, tubes and sections to length. The stop is positioned manually, while the display supports repeated length settings. It does not provide motorised positioning or automatic stock feeding.

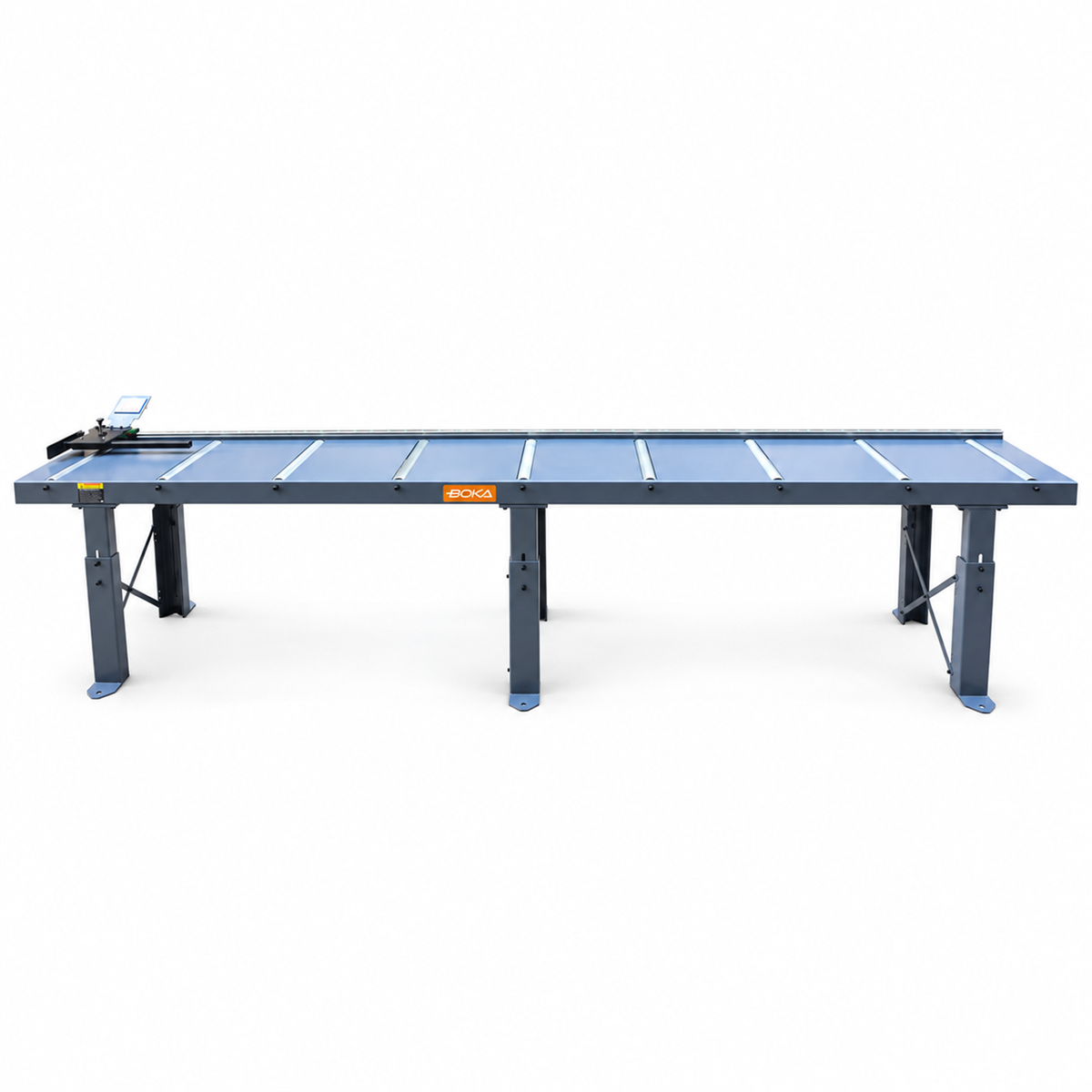

The effective support area is 3050 mm long and 365 mm wide. Working height can be adjusted and clamped between 760 and 1060 mm. Maximum load capacity is 400 kg.
Check support height, stop position and available space against the intended saw before use. Align the conveyor with the machine; it is not a universally compatible machine attachment. A saw is not included.
Listed overall dimensions are 3200 x 650 x 960 mm. The 960 mm height describes the configuration in the source specification, not a fixed working height. The adjustment range is 760–1060 mm. No display resolution or positioning accuracy is specified.
PRODUCT ATTRIBUTES
Model: RB365x3000D
Reference item number from source: 378221
Effective length / width: 3050 / 365 mm
Working height: 760–1060 mm
Maximum load: 400 kg
Overall dimensions as listed: 3200 x 650 x 960 mm
Net weight: 115 kg
Package dimensions: 3300 x 530 x 310 mm
Gross weight: 168 kg
