Boka BS-75G Horizontal Metal Band Saw, 200x120 mm, Precision Cuttin...
Product information

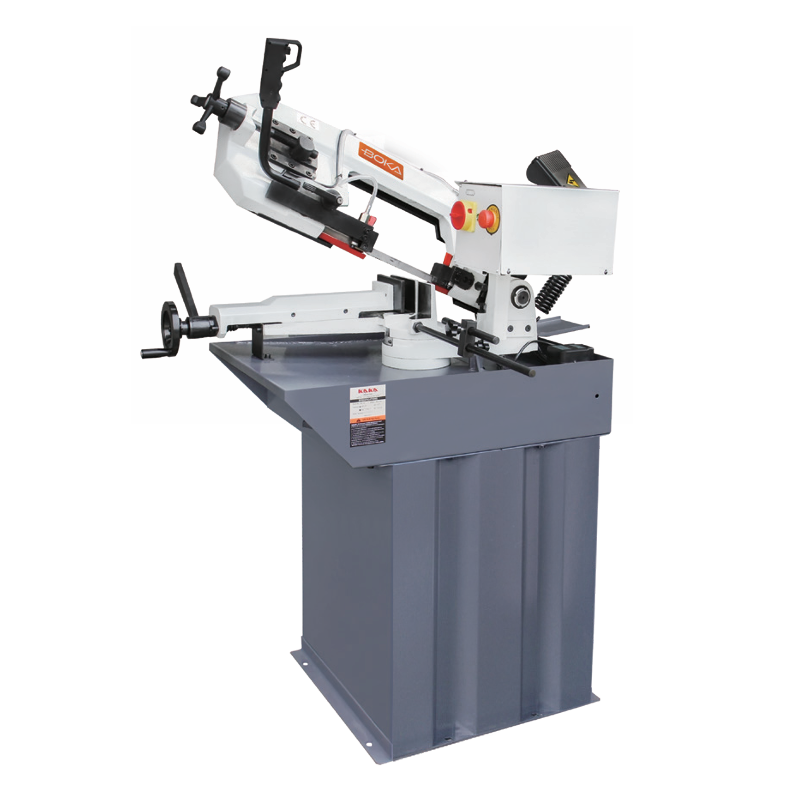

Boka BS-75G
The Boka BS-75G horizontal metal band saw is a high-precision metalworking band saw with a robust design and high flexibility. With a maximum cutting capacity of 152 mm for round workpieces and a maximum cutting length of 200 mm and a maximum cutting width of 120 mm for rectangular workpieces, this band saw is ideal for processing metal pipes, steel plates, beams, and other materials.
Table of contents
Product advantages
- Powerful motor: 0.85 kW motor, powered by 230V power supply and a shaft gear transmission for high performance.
- Maximum cutting capacity: round materials up to 152 mm diameter and rectangular materials up to 200 mm x 120 mm .
- Flexibility and versatility: Allows straight, curved and complex cuts with a maximum inclination of 45° .
- Adjustable guide unit: The guide unit helps align the saw blade, thus extending its lifespan.
- Cooling system: The built-in cooling system ensures that the saw blade and workpiece remain cool during operation, extending their service life.
- Automatic shutdown: The machine switches off automatically when the rear protective cover is opened.
Product presentation
Detailed features

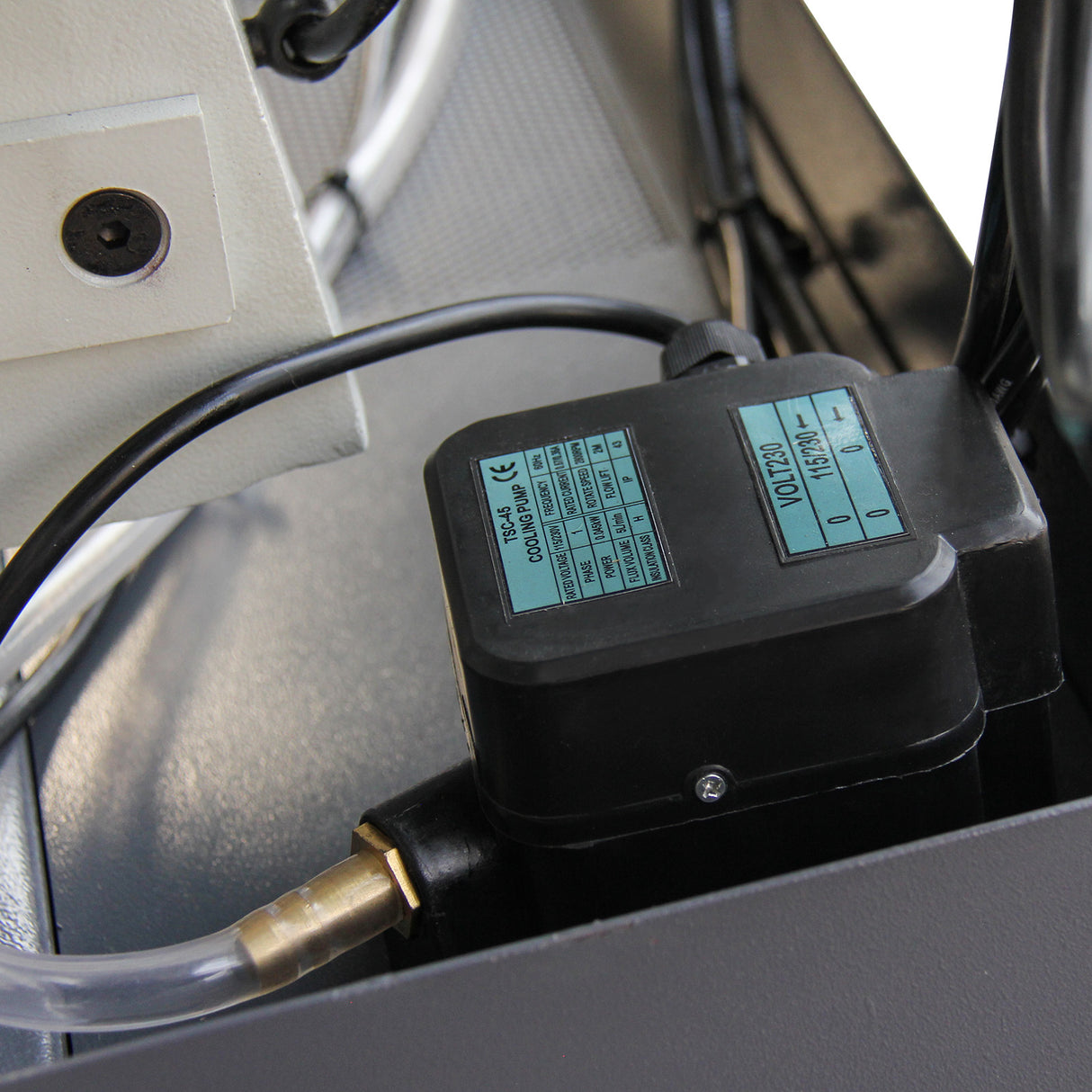

coolant pump
Cooling system with two nozzles for reliable lubrication and cooling of the saw blade – ensures safe working and extends service life.

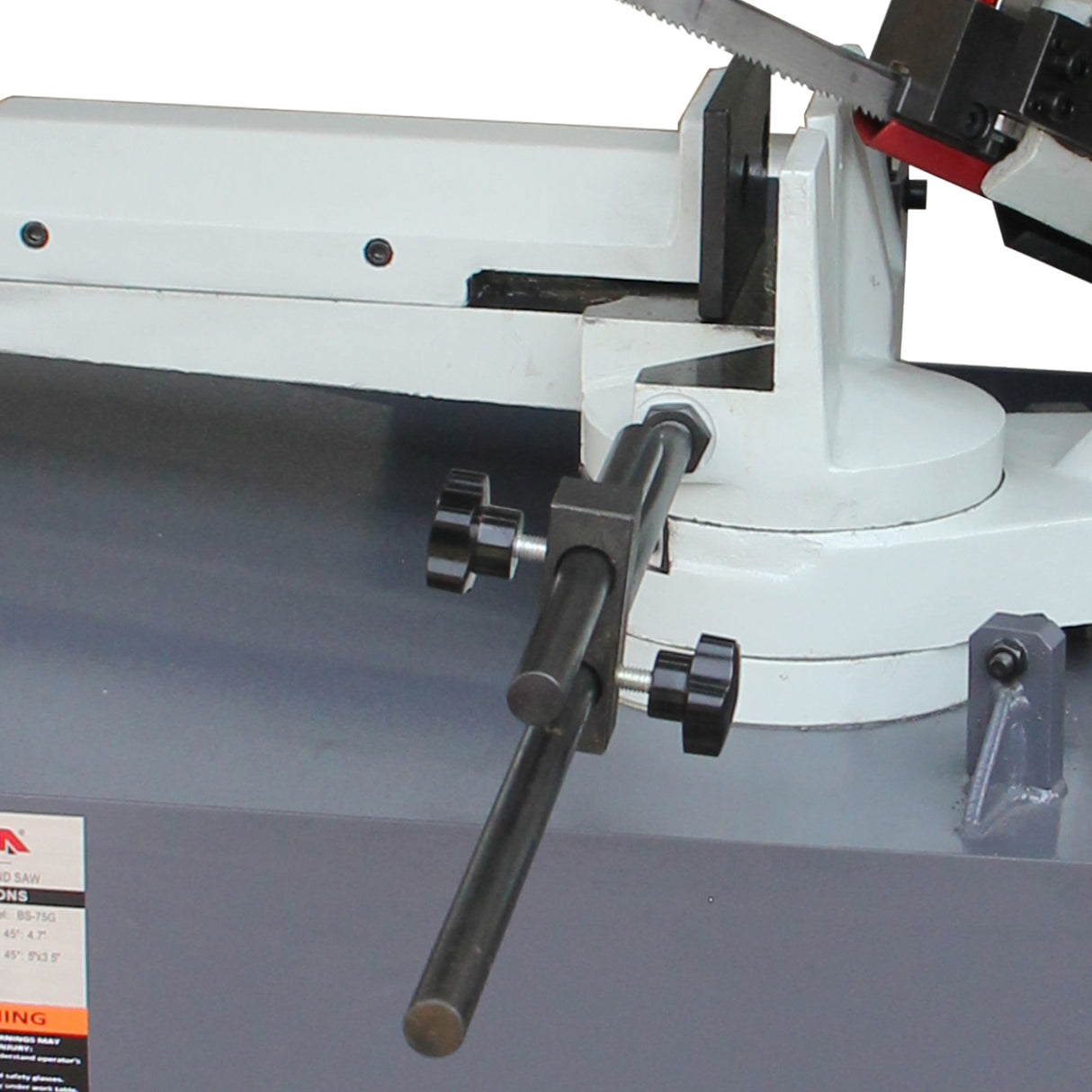

stop bar
With block feed mechanism for fixed cutting lengths – allows presetting and precise repeating of cuts.
Miter cut
The saw frame can be swiveled from 0° to 45° and enables precise miter cuts.
Technical data
| Article no. | 588118V230 |
|---|---|
| Model | BS-75G |
| Cutting capacity round material 90° | Ø 150 mm ( 6" ) |
| Cutting capacity rectangle 90° | 200 × 120 mm ( 7.8" × 4.7" ) |
| Cutting capacity round material 45° (right) | Ø 120 mm ( 4.7" ) |
| Cutting capacity rectangle 45° (right) | 130 × 90 mm ( 5" × 3.5" ) |
| Saw band speed at 50 Hz | 40 / 80 m/min |
| Saw band dimensions | 20 × 0.9 × 2060 mm |
| Engine power | 0.85 kW |
| drive | Gearbox |
| Packaging dimensions (machine body) | 116 × 71 × 79 cm |
| Packaging dimensions (base) | 61 × 39 × 67 cm |
| Net weight / gross weight | 212 / 245 kg |
Frequently Asked Questions (FAQ)
A: Yes. By pivoting the saw frame, precise angle cuts from 0° to 45° are possible – ideal for demanding metalworking.
A: No. This band saw is designed for use in the small to medium power range and therefore is not equipped with a hydraulic feed. The feed is manual, which enables smooth and precise cuts.
A: Yes, the machine has two speed settings, which are adjusted via a gear drive. Detailed information about the speeds can be found in the product description.
